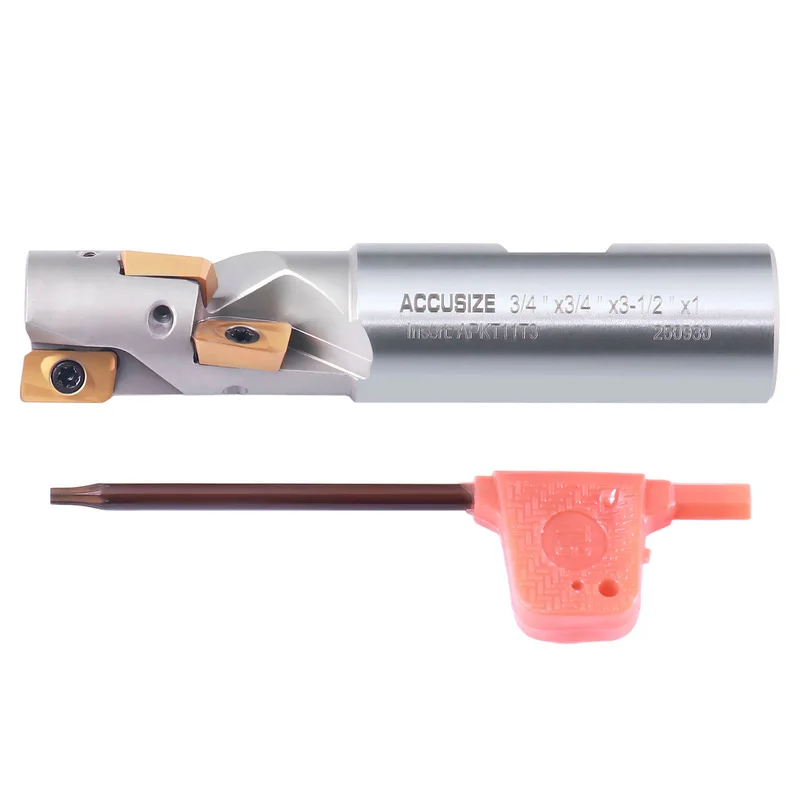

Helical Indexable Weldon Shank End Mill, Right Hand, Heavy Duty Cut

Helical Indexable Weldon Shank End Mill, Right Hand, Heavy Duty Cut

SKU: TR890006358
Inventory: In Stock
Category:
Original price was: $93.99.Current price is: $47.00.

Related products

Description

Indexable Weldon Shank End Mill, Right Hand, Heavy Duty Cut

  • 90 heavy duty deep slotting
  • Side milling and finish pocketing cutter
  • Ideal for high speed machining with low power consumption
  • Majorly used for step shoulder, slot milling, ramp milling and plunge milling. Not recommended for angle cut.

Download Application Brochure

** For purchasing additional inserts, you may find the corresponding Insert SKU below:

Item Diameter (D) Shank Dia. (d) Overall Length (L) Flute Length No of Flutes No of Inserts Insert Style Screw Key
5508-0000 3/4″ 3/4″ 3-1/2″ 1-3/32″ 1 4

APKT11T308

(TiN Coated, 0056-1130)

M2.5 x 6

(0046-2506)

 T8
5508-0002 1″ 1″ 4-1/4″ 1-7/16″ 2 8
5508-0003 1-1/4″ 1-1/4″ 4-1/2″ 1-3/4″ 2 10
5508-0004 1-1/2″ 1-1/4″ 5″ 2-1/8″ 2 14
5508-0005 1-1/2″ 1-1/4″ 4-1/2″ 1-11/16″ 2 6 APKT1604
(TiN Coated, 0056-1604)

M4 x 8

(0046-4008)

 T15
5508-0006 1-3/4″ 1-1/2″ 5-1/2″ 2-1/4″ 2 8
5508-0007 2″ 1-1/2″ 6″ 2-1/4″ 3 12
5508-0008 2″ 1-1/2″ 6-1/2″ 2-13/16″ 3 15
5508-0009 2″ 2″ 7″ 3-1/4″ 3 15

Recommend Cutting Speed:

Item No. Description Materials Hardness(HB) Cutting parameter
Indexable Weldon Shank End Mills V(ft /min) f(inch/Z) ae
5508-0000 3/4×3/4″ / 1 flute with 4 inserts Low-carbon Steel 180 60-120 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 60-120 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 60-90 0.2(0.1-0.2) 0.5D
5508-0002 1″x1″ / 2 flutes with 8 inserts Low-carbon Steel 180 60-120 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 60-120 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 60-90 0.2(0.1-0.2) 0.5D
5508-0003 1-1/4″ x 1-1/4″ / 2 flutes with 10 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0004 1-1/2″ x 1-1/4?/ 2 flutes with 14 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0005 1-1/2″ x 1-1/4?/ 2 flutes with 6 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0006 1-3/4x 1-1/2″ / 2 flutes with 8 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0007 2″ x 1-1/2″ / 3 flutes with 12 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0008 2″ x 1-1/2″ / 3 flutes with 15 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D
5508-0009 2″ x 2″ / 3 flutes with 15 inserts Low-carbon Steel 180 40-80 0.2(0.1-0.2) 0.5D
High-carbon Steel, Alloy Steel 180-280 40-80 0.2(0.1-0.2) 0.5D
Tool Steel 280-350 30-60 0.2(0.1-0.2) 0.5D

**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **

Ramp Milling Parameter

Item

Diameter of Cutter
D

 Max. Cutting Depth
ap		 Max. Ramping Angle Min. Milling Length
Lm		 Min. Milling Diameter D Max. Pitch
(mm)
5508-0000 3/4″ 0.394” 5.0 4.50” 1.10” 2.0
5508-0002 1″ 0.394” 4.5 3.22” 1.57” 2.0
5508-0003 1 1/4″ 0.394” 3.0 7.51” 2.20” 2.0
