Description

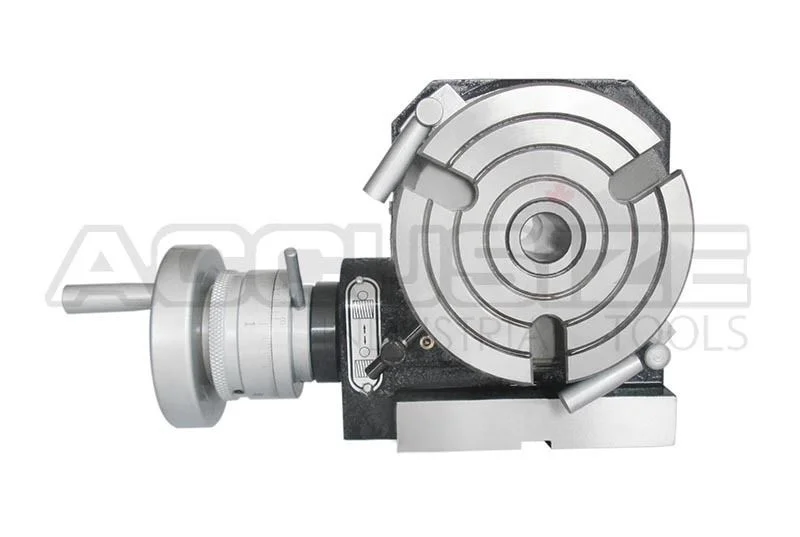

Horizontal/Vertical Precision Rotary Tables
-
1/2″ T slots
-
The table is graduated a full 360 degrees
-
Deliver excellent performance, practical design and reasonable cost. Widely used for circular work, angle setting, boring, spotfacing and similar work
-
Gear ratio: 4″ table is 72:1; 6″ & 8″ table is 90:1
-
Chrome plated dial.
- Hardened and precision ground.
| Item | Table | Base Dimension | Width of T-Slot | Bolt Slots | Center Sleeve | Worm Gear Ratio | Related Products | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | H | H1 | A | B | e | Type | K | ||||
| 5817-4004 | 4″ | 3.42″ | 3.35″ | 5.71″ | 4.53″ | 0.47″ | 0.47″ | MT2 | 72:1 | N/A | |
| 5817-4006 | 6″ | 3.35″ | 3.93″ | 7.87″ | 6.29″ | 0.47″ | 0.63″ | MT2 | 90:1 | Dividing Plate for 6″ Table | |
| 5817-4008 | 8″ | 3.81″ | 5.31″ | 10.43″ | 8.66″ | 0.55″ | 0.63″ | MT3 | 90:1 | Dividing Plate for 8″ Table |
