Description

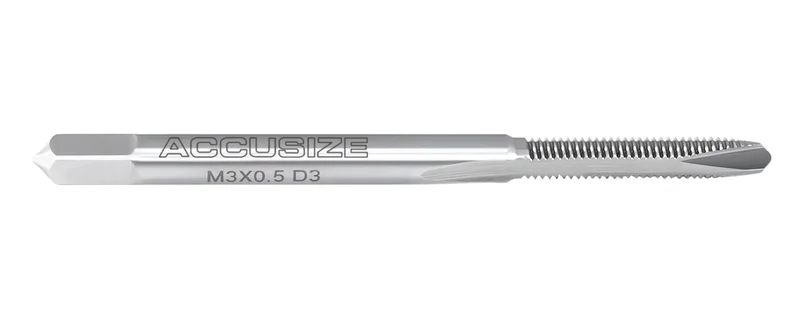

H.S.S. Metric Spiral Flute Point Taps, from M3 x 0.5 to M24 x 3.0
- Made from high speed steel with ground threads.
- Right hand cut, square drive shank.
- Bright finish.
- Spiral Point, American Standard.
- Fully Ground
| Item | Size | Fl | H Limit | OAL. | Thread Length | Shank Dia. |
| SPT-3M-05 | M3X0.5 | 2 | D3 | 1-15/16″ | 5/8″ | 0.141″ |
| SPT-4M-07 | M4X0.7 | 2 | D4 | 2-1/8″ | 3/4″ | 0.168″ |
| SPT-5M-08 | M5X0.8 | 2 | D4 | 2-3/8″ | 7/8″ | 0.194″ |
| SPT-6M-10 | M6X1.0 | 2 | D5 | 2-1/2″ | 1″ | 0.255″ |
| SPT-8M-10 | M8X1.0 | 2 | D5 | 2-23/32″ | 1-1/8″ | 0.318″ |
| SPT-8M-125 | M8X1.25 | 2 | D5 | 2-23/32″ | 1-1/8″ | 0.318″ |
| SPT-10M-10 | M10X1.0 | 2 | D5 | 2-15/16″ | 1-1/4″ | 0.381″ |
| SPT-10M-125 | M10X1.25 | 3 | D5 | 2-15/16″ | 1-1/4″ | 0.381″ |
| SPT-10M-150 | M10X1.5 | 3 | D6 | 2-15/16″ | 1-1/4″ | 0.381″ |
| SPT-12M-125 | M12X1.25 | 3 | D5 | 3-3/8″ | 1-21/32″ | 0.367″ |
| SPT-12M-150 | M12X1.5 | 3 | D6 | 3-3/8″ | 1-21/32″ | 0.367″ |
| SPT-12M-175 | M12X1.75 | 3 | D6 | 3-3/8″ | 1-21/32″ | 0.367″ |
| SPT-14M-125 | M14X1.25 | 3 | D5 | 3-19/32″ | 1-21/32″ | 0.429″ |
| SPT-14M-150 | M14X1.5 | 3 | D6 | 3-19/32″ | 1-21/32″ | 0.429″ |
| SPT-14M-200 | M14X2.0 | 3 | D7 | 3-19/32″ | 1-21/32″ | 0.429″ |
| SPT-16M-150 | M16X1.5 | 3 | D6 | 3-13/16″ | 1-13/16″ | 0.480″ |
| SPT-16M-200 | M16X2.0 | 3 | D7 | 3-13/16″ | 1-13/16″ | 0.480″ |
| SPT-18M-150 | M18X1.5 | 3 | D6 | 4-1/32″ | 1-13/16″ | 0.542″ |
| SPT-18M-250 | M18X2.5 | 3 | D7 | 4-1/32″ | 1-13/16″ | 0.542″ |
| SPT-20M-150 | M20X1.5 | 3 | D6 | 4-15/32″ | 2″ | 0.652″ |
| SPT-20M-250 | M20X2.5 | 3 | D7 | 4-15/32″ | 2″ | 0.652″ |
| SPT-22M-150 | M22X1.5 | 3 | D6 | 4-11/16″ | 2-7/32″ | 0.697″ |
| SPT-22M-250 | M22X2.5 | 3 | D7 | 4-11/16″ | 2-7/32″ | 0.697″ |
| SPT-24M-150 | M24X1.5 | 3 | D6 | 4-29/32″ | 2-7/32″ | 0.760″ |
| SPT-24M-300 | M24X3.0 | 3 | D7 | 4-29/32″ | 2-7/32″ | 0.760″ |
