Description

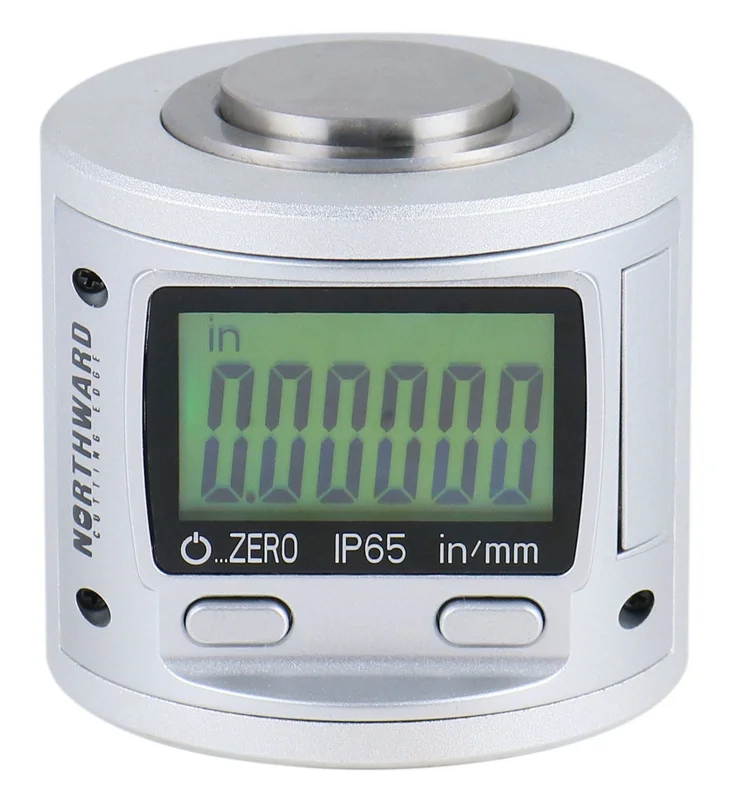

The IP65 Electronic Digital Magnetic Height Presetter works withCNC lathes, milling machines and drilling machines. Compared to the other Z-Axis zero-setters, the magnetic power is enhanced; the function force is greater. It has IP65 grade water-resistant(coolant proof) and dust resistant attributes. The large display provides clear readings. Each piece also comes with a premium aluminum case that entirely protects theCNC electronic Z-Axis setter during shipping. The large touching area delivers operational excellence, easy to operate.
Features:
- Inductive measurement system
- Protection level: IP65
- Power supply: 3V CR2032, battery life > 1 year
- The light indicating when LCD display “0.000”
- Range: 0-0.12″ (2.5mm)
- Inch/Metric
- Resolution:0.00005″ / 0.001mm
- Accuracy: 0.008mm/0.0003″
- Repeatability:0.0001″ / 0.003mm
- Tolerance= 0.0003/0.008mm
- Power on automatically when the measuring surface moving
- Aluminum fitting case
- Magnetic bottom, super adhesion.
