Description

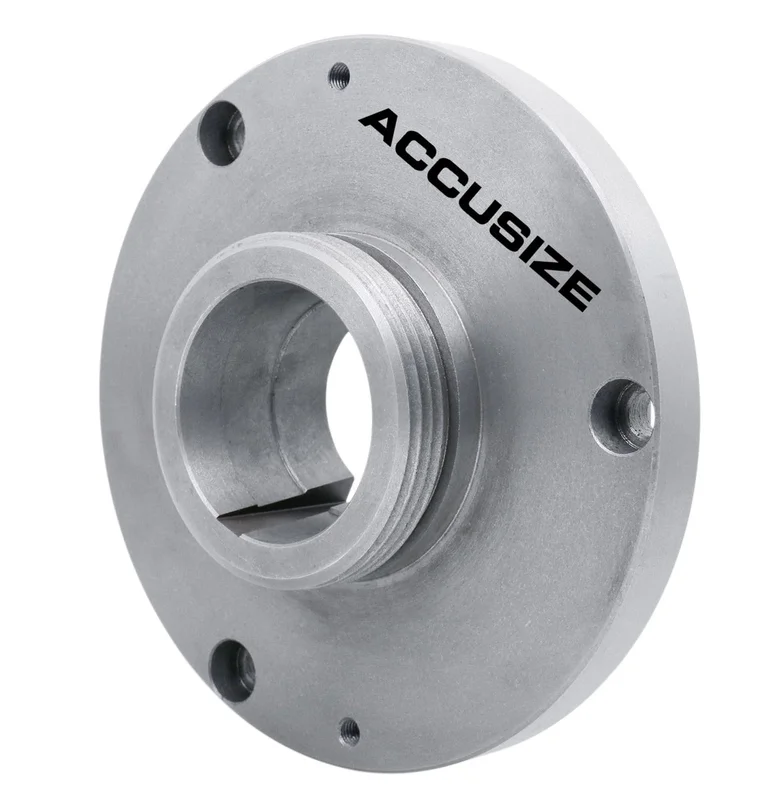

L-00 Type Adaptors
- For 3-jaw plain back chucks.
- Direct mounting on “L” type spindle noses.
- The back plate shoulder requires machining. For instructions on truing the back plate.
- Spindle Taper: L-00
- Does not have extra bolts
- Mounting Bolt Circle Size:
- L00-6″: M8
- L00-8″: M10
- L00-10″: M12
- The diameter of the bolt circle mounting pattern:
- L00-6″: 142mm
- L00-8″:180mm
- L00-10″: 226mm
| Item | Chuck Dia. | A | B | C | D | E | F |
| 2700-0500 | 6″ | 160mm | 54mm | 69.85mm | 3-3/4″-6 | 56mm | 14mm |
| 2700-0501 | 8″ | 200mm | 54mm | 69.85mm | 3-3/4″-6 | 56mm | 14mm |
| 2700-0502 | 10″ | 250mm | 54mm | 69.85mm | 3-3/4″-6 | 56mm | 14mm |
