Description

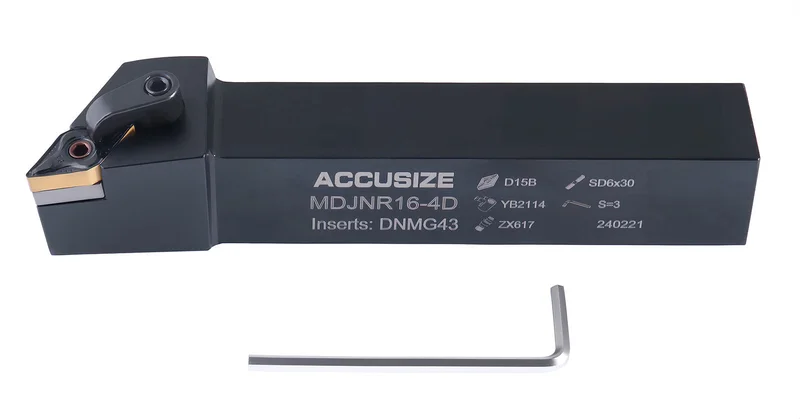

MDJN R/L Toolholders
- 3 side cutting edge angle
- Used for turning, facing, and profiling, from roughing to finishing.
- Accept negative 55 diamond DNMG inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item | Right/Left Hand | Model | Shank Square (A & B) | F | OAL (C) |
Inserts | Clamp | Lock Pin | Shim | Clamp Screw |
||
| I.C. | Insert Coated,SKU | Thickness | ||||||||||
| 2302-5016 | Right | MDJN R-12-3B | 3/4″ | 1″ | 4-1/2″ | – |
DNMG33 (CVD Coated DNMG332-MD, 2206-1026) |
– | YB1814 |
ZX513 (0028-0513) |
D11B |
SD6 x 25 |
| 2302-6016 | Left | |||||||||||
| 2302-5020 | Right | MDJN R-16-4D | 1″ | 1-1/4″ | 6″ | 1/2″ |
DNMG43 (CVD Coated DNMG432-MD, 2206-1028) |
3/16″ | YB2114 | ZX619 | D15B | SD6 x 30 |
| 2302-6020 | Left | MDJN L-16-4D |
