Description

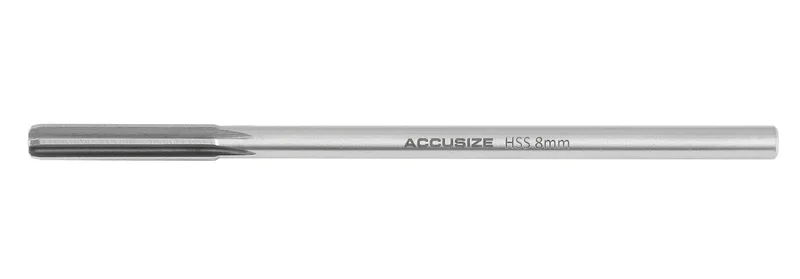

Metric ANSI HSS M2 Straight Flute Chucking Reamers, Straight Shank, Right Hand
- Standard 45 chamfered cutting edges
- Straight flute design
- Bright finished
- Diameter Tolerance:
- Thru 1/4″ diameter……+0.0001″ to +0.0004″
– 0.0000″ - Above 1/4″ to 1″……….+0.0001″ to +0.0005″
– 0.0000″ - Above 1″ to 1-1/2″…….+0.0002″ to +0.0006″
– 0.0000″
- Thru 1/4″ diameter……+0.0001″ to +0.0004″
| Item | Size | Flute No. | Dec. Dia. | Flute Length | Overall Length |
| 0400-5080 | 8.0 mm | 6 | 0.3150″ | 1-1/2″ | 6″ |
| 0400-5150 | 15.0 mm | 6 | 0.5906″ | 2″ | 8″ |
| 0400-5160 | 16.0 mm | 8 | 0.6299″ | 2-1/4″ | 9″ |
| 0400-5180 | 18.0 mm | 8 | 0.7087″ | 2-1/4″ | 9″ |
| 0400-5200 | 20.0 mm | 8 | 0.7874″ | 2-1/2″ | 9-1/2″ |
