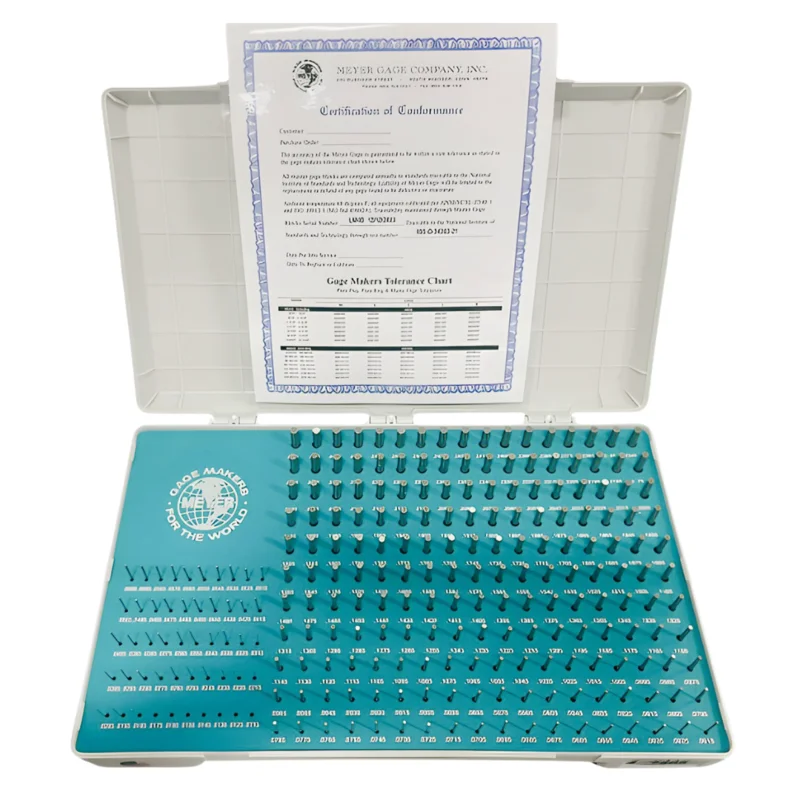

Meyer Class Z Pin Gage Sets, Made in USA. All gage sets come with the NIST Certificate.
About Meyer Class Z Pin Gage Sets:
Meyer started making the original ZZ back in 1965 and their competition has tried, but cant copy the quality of these affordable pin gage sets. Meyer now has taken the extra step for the better pin gage, Class Z.
Introducing the Meyer Class Z:
A closer tolerance (0.0001), is more accurate, and better for your needs.
Here is a comparison of Class ZZ and the Class Z gage pin specifications:
| Comparison | Class ZZ | Class Z |
| Size deviation: | 0.0002 | 0.0001 |
| Roundness geometry: | 0.0001 | 0.00005 |
| Surface finish: | 10 micro | 8 micro |
The Meyer Gage Class Z gage pin will meet or exceed the requirements of Class ZZ, and can replace the Class ZZ in any situation or application.
Features:
- Boxes and gages both marked
- Each set is carefully packaged in a durable, compact case, making them easy to store and transport to the point of use.
- Size and serial number laser etched on each piece (MEP0-CZIN, MEM0-CZIN, M05P-CZIN, M05M-CZIN not etched)
- Material: 52100 Bearing Steel
- No sharp edges
- All members 2 long
Uses:
- Checking locations
- Measuring hole sizes
- GO & NOGO gaging
- Setting micrometers
- Checking distances between holes
Finish:
- Each gage is inspected and has an 8 microfinish or better
- Heat treated to a hardness of 60-62 Rockwell C
- All English gages with 0.0001 limit
By investing in Meyer English Class Z Pin Gage Sets, you can:
- Improve the accuracy and consistency of your quality control processes
- Reduce the risk of defective parts and associated costs
- Enhance customer satisfaction through the delivery of high-quality products
- Streamline your inspection and measurement processes, increasing efficiency and productivity
Minus Sets:
| Accusize Item# | Meyeritem# | Tolerance Direction | Size Range | No.of Gages |
| MEM0-CZIN | M0M | Minus | 0.011 to 0.060 | 50 |
| M05M-CZIN | M05M | Minus | 0.0115 to 0.0605 | 50 |
| C10M-CZIN | C10M | Minus | 0.011 to 0.250 | 240 |
| 105M-CZIN | C105M | Minus | 0.0115 to 0.2505 | 240 |
| MEM1-CZIN | M1M | Minus | 0.061 to 0.250 | 190 |
| M15M-CZIN | M15M | Minus | 0.0615 to 0.2505 | 190 |
| MEM2-CZIN | M2M | Minus | 0.251 to 0.500 | 250 |
| M25M-CZIN | M25M | Minus | 0.2515 to 0.5005 | 250 |
| MEM3-CZIN | M3M | Minus | 0.501 to 0.625 | 125 |
| M35M-CZIN | M35M | Minus | 0.5015 to 0.6255 | 125 |
| MEM4-CZIN | M4M | Minus | 0.626 to 0.750 | 125 |
| M45M-CZIN | M45M | Minus | 0.6265 to 0.7505 | 125 |
| MEM5-CZIN | M5M | Minus | 0.751 to 0.832 | 82 |
| M55M-CZIN | M55M | Minus | 0.7515 to 0.8325 | 82 |
| MEM6-CZIN | M6M | Minus | 0.833 to 0.916 | 84 |
| M65M-CZIN | M65M | Minus | 0.8335 to 0.9165 | 84 |
| MEM7-CZIN | M7M | Minus | 0.917 to 1.000 | 84 |
| M75M-CZIN | M75M | Minus | 0.9175 to 1.0005 | 84 |
Plus Sets:
| Accusize Item# | Meyeritem# | Tolerance Direction | Size Range | No.of Gages |
| MEP0-CZIN | M0P | Plus | 0.011 to 0.060 | 50 |
| M05P-CZIN | M05P | Plus | 0.0115 to 0.0605 | 50 |
| C10P-CZIN | C10P | Plus | 0.011 to 0.250 | 240 |
| 105P-CZIN | C105P | Plus | 0.0115 to 0.2505 | 240 |
| MEP1-CZIN | M1P | Plus | 0.061 to 0.250 | 190 |
| M15P-CZIN | M15P | Plus | 0.0615 to 0.2505 | 190 |
| MEP2-CZIN | M2P | Plus | 0.251 to 0.500 | 250 |
| M25P-CZIN | M25P | Plus | 0.2515 to 0.5005 | 250 |
| MEP3-CZIN | M3P | Plus | 0.501 to 0.625 | 125 |
| M35P-CZIN | M35P | Plus | 0.5015 to 0.6255 | 125 |
| MEP4-CZIN | M4P | Plus | 0.626 to 0.750 | 125 |
| M45P-CZIN | M45P | Plus | 0.6265 to 0.7505 | 125 |
| MEP5-CZIN | M5P | Plus | 0.751 to 0.832 | 82 |
| M55P-CZIN | M55P | Plus | 0.7515 to 0.8325 | 82 |
| MEP6-CZIN | M6P | Plus | 0.833 to 0.916 | 84 |
| M65P-CZIN | M65P | Plus | 0.8335 to 0.9165 | 84 |
| MEP7-CZIN | M7P | Plus | 0.917 to 1.000 | 84 |
| M75P-CZIN | M75P | Plus | 0.9175 to 1.0005 | 84 |
