Description

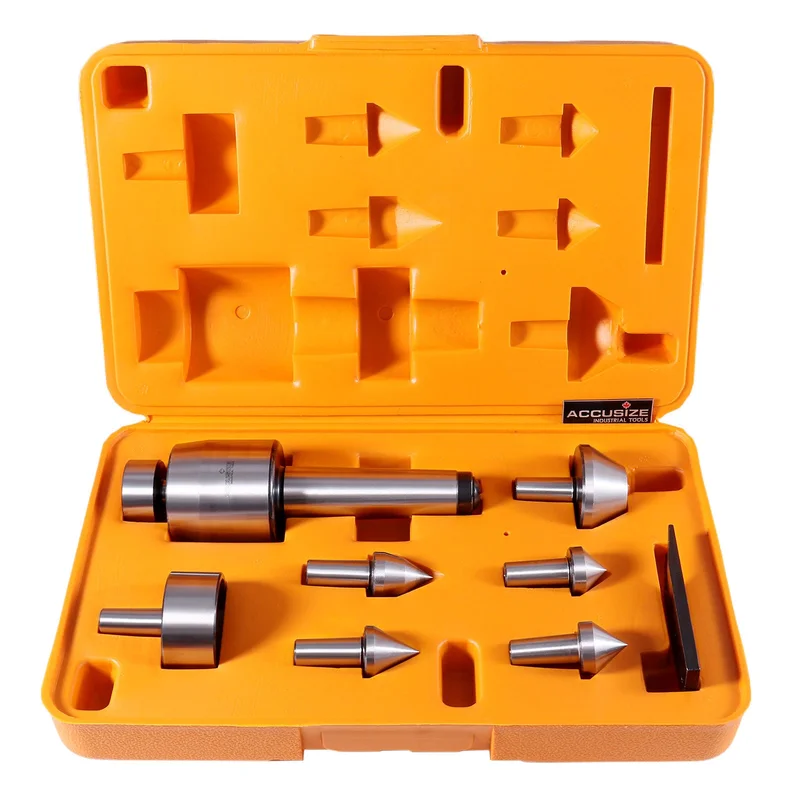

Morse Taper Medium Duty Live Center Sets
Benefits:
- Less heat is generated due to the spring plate used at the end of the angular bearing.
- Complete with (7) interchangeable points.
- In a fitted plastic case.
Applications:
- Can be used for heavy-duty work due to solid point and body.
Features:
- Body made of special tool steel hardened and ground with special taper mount for a quick change of points.
- Sets packed in carton.
- Precision needle bearings are used for high accuracy and long life.
- Accuracy guaranteed to 0.012″ to 0.0039″at the center head.
| Item | Morse Taper | D1 | L1 | A | B | C | D | E | F | G | ||||||||||
| D2 | L2 | D2 | L2 | D2 | L2 | D2 | L2 | D2 | D3 | L2 | D2 | L2 | d | D2 | L2 | d | ||||
| 6920-3426 | 3MT | 0.47″ | 0.945″ | 0.787″ | 1.89″ | 0.79″ | 0.71″ | 0.79″ | 1.59″ | 0.71″ | 2.20″ | 1.37″ | 0.59″ | 1.97″ | 0.87″ | 1.65″ | 0.71″ | 1.38″ | 1.89″ | 1.18″ |
| 6920-3427 | 4MT | 0.59″ | 1.18″ | 1.10″ | 2.42″ | 1.10″ | 2.18″ | 1.10″ | 2.02″ | 1.02″ | 2.87″ | 2.16″ | 1.18″ | 2.42″ | 1.57″ | 2.16″ | 1.37″ | 2.16″ | 2.36″ | 1.89″ |
