Description

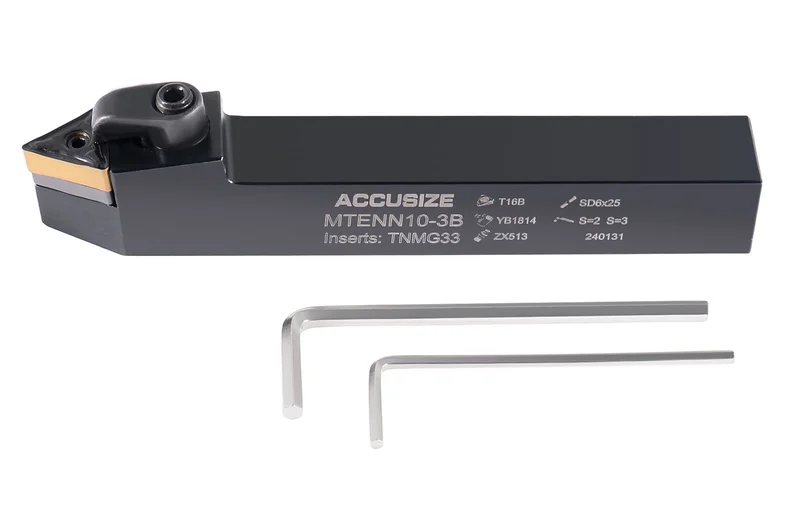

MTENN Toolholders
- For facing
- Negative rake
- 30 end cutting edge angle
- TNMG inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item | Model | Shank Square | F | OAL (C) |
Inserts | Clamp | Clamp Screw | Locking Pins | Shims | ||
| I.C. | Insert Coated, SKU | Thickness | |||||||||
| 2313-5014 | MTENN-10-3B | 5/8″ | 5/16″ | 4-1/2″ | 3/8″ |
TNMG33 (CVD Coated TNMG332-MD, 2222-1034) |
3/16″ | YB1814 | SD6 x 25 |
ZX513 (0028-0513) |
T16B |
| 2313-5016 | MTENN-12-3C | 3/4″ | 3/8″ | 4-1/2″ | 3/8″ |
TNMG33 (CVD Coated TNMG332-MD, 2222-1034) |
3/16″ | YB1814 | SD6 x 25 |
ZX513 (0028-0513) |
T16B |
| 2313-5020 | MTENN-16-4D | 1″ | 1/2″ | 6″ | 1/2″ | TNMG432 (CVD Coated TNMG432-MD, 2222-1036) |
3/16″ | YB1814 | SD6 x 25 |
ZX617 (0028-0617) |
T22B |
CARBIDE INSERT, TiN COATED
| Item | Size |
| 2122-1034 | TNMG332 |
CARBIDE INSERT CVD COATED, BPS101
| Item | Size |
| 2222-1034 | TNMG332 |
| 2222-1036 | TNMG432 |
