Description

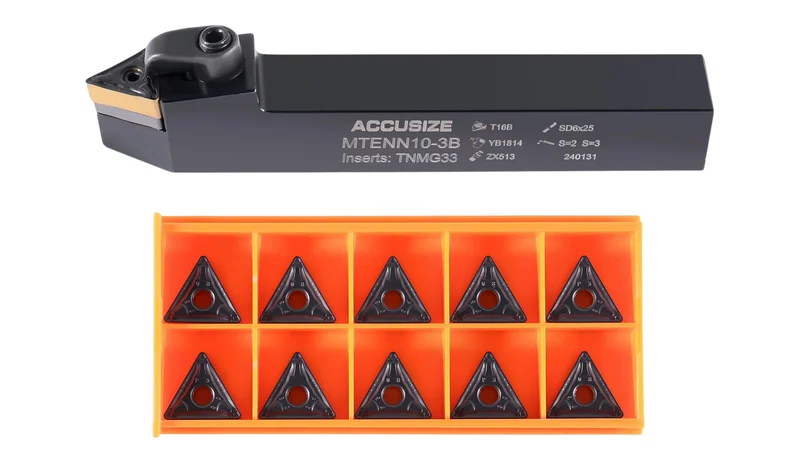

MTENN Toolholders with TNMG Carbide Inserts
- For facing
- Negative rake
- 30 end cutting edge angle
- TNMG Carbide inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item SKU# | Tool holder (SKU#) | Shank Square | F | OAL (C) |
Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | |||
| I.C. | Included Insert (SKU#) |
Compatible but not included Insert (SKU#) |
Thickness | |||||||||
| 2313-5014INS |
MTENN-10-3B (2313-5014) |
5/8″ | 5/16″ | 4-1/2″ | 3/8″ | CVD CoatedTNMG332-MD, (2222-1034) | TiN CoatedTNMG332, (2122-1034) | 3/16″ | CL-6 | XNS-0520 | NL-0414 | T1603B |
| 2313-5016INS |
MTENN-12-3C (2313-5016) |
3/4″ | 3/8″ | 4-1/2″ | 3/8″ | TiN CoatedTNMG332, (2122-1034) | CVD CoatedTNMG332-MD, (2222-1034) | 3/16″ | CL-6 | XNS-0829 | NL-0414 | T1603B |
| 2313-5020INS1 |
MTENN-16-4D (2313-5020) |
1″ | 1/2″ | 6″ | 1/2″ | TiN CoatedTNMG432,(2122-1036) | CVD CoatedTNMG432-MD, (2222-1036) | 3/16″ | CL-12 | XNS-0829 | NL-0617 | T2203B |
| 2313-5020INS2 |
MTENN-16-4D (2313-5020) |
1″ | 1/2″ | 6″ | 1/2″ | CVD CoatedTNMG432-MD, (2222-1036) | TiN CoatedTNMG432,(2122-1036) | 3/16″ | CL-12 | XNS-0829 | NL-0617 | T2203B |
Inserts
TNMG, Carbide Inserts, Tin Coated, 10 Pcs/Set
- ANSI #: TNMG332
- ISO #: TNMG160408
- Insert Style: TNMG
- Insert Size: 332
- IC: 3/8″
- Thickness: 3/16″
- Thru-Hole: 0.15″
- Radius: 1/32
| Item | Description |
| 2122-1034 | C5 Grade Coated, TNMG332 |
TNMG Carbide Inserts CVD Coated Black/Yellow 10 ps/box
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
- For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chip breaker
- For medium-duty turning
- With the broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 2222-1034 | TNMG332-MD | TNMG160408-MD | 3/8” | 3/16” | 5/32” | 49/64” |
| 2222-1036 | TNMG432-MD | TNMG220408-MD | 1/2” | 3/16” | 13/64” | 1/32” |
