Description

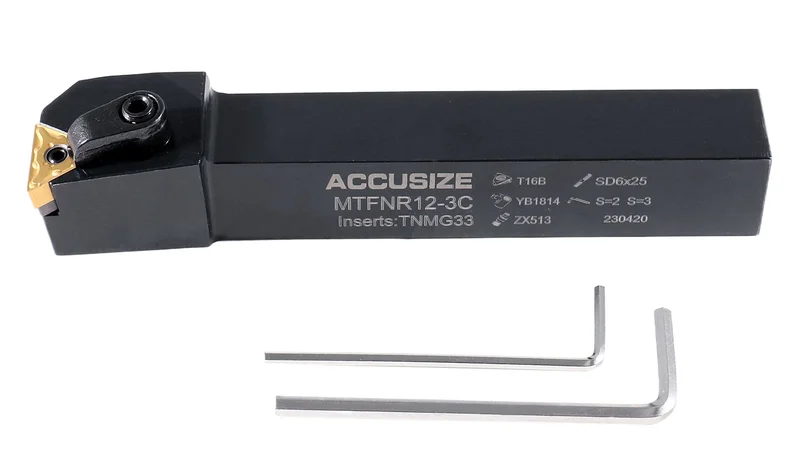

MTFN R/L Toolholders
- Used for rough or finish facing.
- Negative rake
- 0 end cutting edge angle
- TNMG inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item# | Right/Left Hand | Model | Shank Square (A & B) | F | OAL (C) |
Inserts | Finger Clamp | Clamp | Locking Pins | Shims | Clamp Screw | ||
| I.C. | Thickness | Insert Coated, (SKU) | |||||||||||
| 2310-5014 | Right | MTFN R-12-3C | 3/4″ | 3/4″ | 4-1/2″ | 3/8″ | 3/16″ |
TNMG33 (TiN Coated TNMG332, 2122-1034) (CVD Coated TNMG332-MD, 2222-1034) |
CL-6 | YB1814 |
ZX513 (0028-0513) |
T16B | SD6 x 25 |
| 2310-6014 | Left | MTFN L-12-3C | SD6 x 25 | ||||||||||
| 2310-5018 | Right | MTFN R-16-4D | 1″ | 1-1/4″ | 6″ | 1/2″ | 3/16″ |
TNMG43 (CVD Coated TNMG432-MD, 2222-1036) |
CL-12 | YB2114 |
ZX617 (0028-0617) |
T22B | SD6 x 30 |
| 2310-6018 | Left | MTFN L-16-4D | SD6 x 30 |
