Description

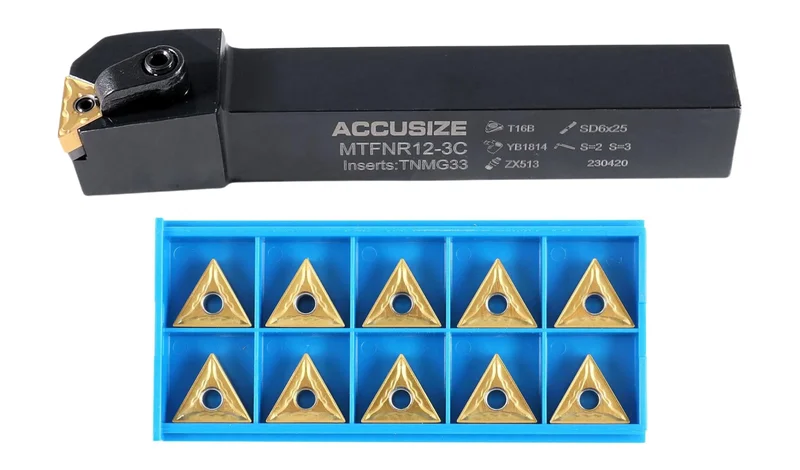

MTFN R/L Toolholders with TNMG Carbide Inserts
- For turning and facing
- Negative rake
- 0 end cutting edge angle
- TNMG TiN/Cvd Coated inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item# | Right/Left Hand | Tool holder (SKU#) | Shank Square (A & B) |
F | OAL (C) |
Inserts | Finger Clamp | Clamp Screw | Locking Pins | Shims | |||
| I.C. | Thickness | Included Insert (SKU#) |
Compatible but not included Insert (SKU#) |
||||||||||
| 2310-5014INS | Right |
MTFN R-12-3C (2310-5014) |
3/4″ | 3/4″ | 4-1/2″ | 3/8″ | 3/16″ |
TNMG33 TiN Coated TNMG332, (2122-1034) |
TNMG33 CVD Coated TNMG332-MD, (2222-1034) |
CL-6 | XNS-0520 |
ZX513 (0028-0513) |
T1603B |
| 2310-6014INS | Left |
MTFN L-12-3C (2310-6014 |
|||||||||||
| 2310-5018INS1 | Right |
MTFN R-16-4D (2310-5018) |
1″ | 1- 1/4″ | 6″ | 1/2″ | 3/16″ |
TNMG43 TiN Coated TNMG432 (2222-1036) |
TNMG43 CVD Coated TNMG432-MD, (2222-1036) |
CL-12 | XNS-0829 |
ZX617 (0028-0617) |
T2203B |
| 2310-5018INS2 | Right |
MTFN R-16-4D (2310-5018) |
TNMG43 CVD Coated TNMG432-MD, (2222-1036) |
TNMG43 TiN Coated TNMG432 (2222-1036) |
|||||||||
| 2310-6018INS | Left |
MTFN L-16-4D (2310-6018) |
TNMG43 CVD Coated TNMG432-MD, (2222-1036) |
TNMG43 TiN Coated TNMG432 (2222-1036) |
TNMG, Carbide Inserts, Tin Coated, 10 Pcs/SetInserts
- ANSI #: TNMG332
- ISO #: TNMG160408
- Insert Style: TNMG
- Insert Size: 332
- IC: 3/8″
- Thickness: 3/16″
- Thru-Hole: 0.15″
- Radius: 1/32
| Item | Description |
| 2122-1034 | C5 Grade Coated, TNMG332 |
TNMG Carbide Inserts CVD Coated Black/Yellow 10 ps/box
- CVD Coated
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: finish
Product features
- BPS101 Black/Yellow
- Coating Grade: CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting. Machining of gray and ductile iron at low to medium cutting speed
- For hard materials continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning
- With broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
| Item # | ANSI # | I.S.O. # | I.C | Thickness | Hole | Radius |
| 2222-1034 | TNMG332-MD | TNMG160408-MD | 3/8” | 3/16” | 5/32” | 49/64” |
| 2222-1036 | TNMG432-MD | TNMG220408-MD | 1/2” | 3/16” | 13/64” | 1/32” |
