Description
?m=Metric ?in= Inch
(Ra<125 ?in)
(Ra<197 ?in)
(Ra<393 ?in)
(Ra<590 ?in)
(Ra<125 in)

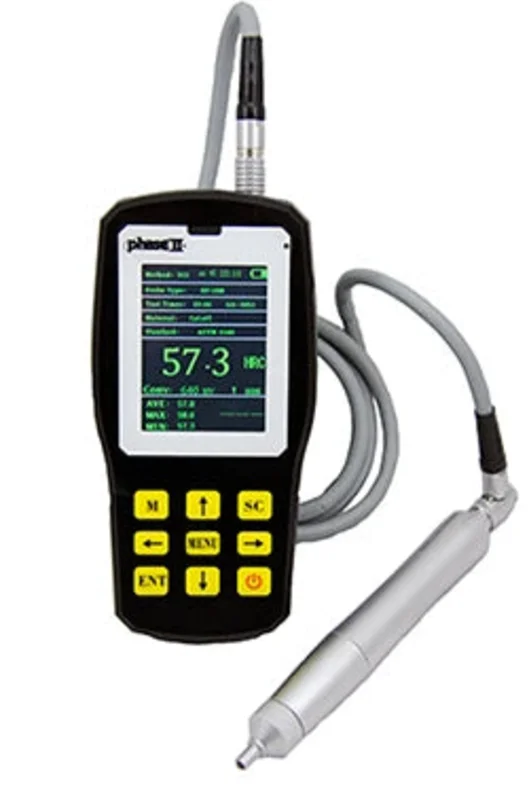

Motorized UCI Probe Specifications:
| Probe Type/Model | PHT-6030 | PHT-6080 | PHT-6100 |
|---|---|---|---|
| Loading Force | .30kg (3N) | .80kg (8N) | 1kgf (10N) |
| Probe Diameter | 46mm | 46mm | 46mm |
| Length | 198mm | 198mm | 198mm |
| Oscillating Rod Diameter | 3.7mm | 3.7mm | 3.7mm |
| Surface Roughness | Ra<3.2?m | Ra<5 ?m | Ra<8 ?m |
| Requirements ?m=Metric ?in= Inch |
(Ra<125 ?in) | (Ra<197 ?in) | (Ra<314 ?in) |
| Min weight of test sample | 0.3kg (.66lbs) | 0.3kg (.66lbs) | 0.3kg (.66lbs) |
| Minimum thickness of sample | 2mm (.08) | 2mm (.08) | 2mm (.08) |
Indentation Depth (?m)
| Hardness | .30kg Motorized | .80kg Motorized | 1kg Motorized | 1kg Manual | 2kg Manual | 5kg Manual | 10kg Manual |
|---|---|---|---|---|---|---|---|
| 800HV | 4 | 5 | 7 | 7 | 10 | 15 | 22 |
| 600HV | 4 | 5 | 8 | 8 | 11 | 18 | 25 |
| 500HV | 5 | 6 | 9 | 9 | 12 | 19 | 27 |
| 300HV | 6 | 8 | 11 | 11 | 16 | 25 | 35 |
| 100HV | 10 | 13 | 19 | 19 | 27 | 43 | 61 |
OPTIONAL ACCESSORIES:
Special Application Impact Devices
- Impact Device D: Part No. PHT1800-100
Universal standard device:
Use for the majority of hardness testing assignments - Impact Device DL: Part No. PHT1800-115
Tip 4mm diameter x 1.96 length Measurements in extremely confined spaces - Impact Device G: Part No. PHT1800-125
Enlarged test tip:
For use on solid heavy components such as; rough castings and forgings. Brinell only. - Impact Device DC: Part No. PHT1800-120
Extremely short impact device
Used for very confined spaces such as holes, cylinders, internal measurements - Impact Device D+15: Part No. PHT1800-110
Slim front section with coil set back
Hardness measurements in grooves, recessed surface - Impact Device C: Part No. PHT1800-130
Reduced impact energy
For testing case hardened material
