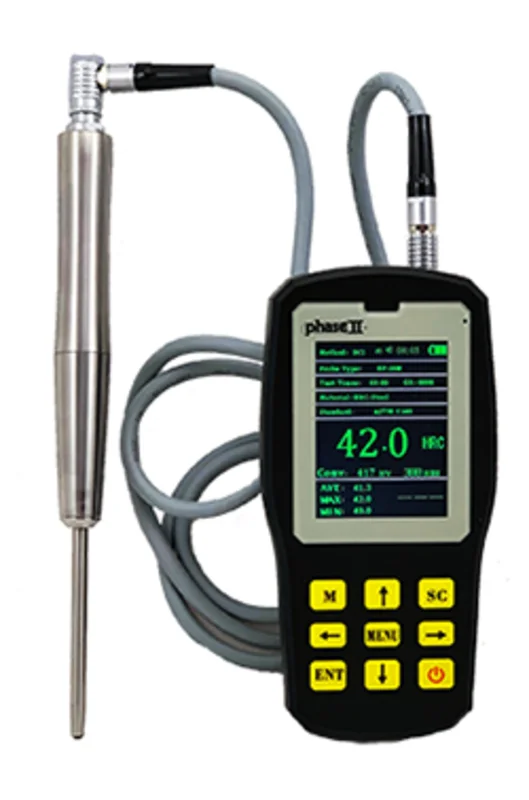

Phase II+ Ultrasonic Hardness with Long 1kgf Probe (Manual), #PHT-6011

Description

2mm (.08) 2mm (.08) 2mm (.08)

Motorized UCI Probe Specifications:

Probe Type/Model	PHT-6030	PHT-6080	PHT-6100
Loading Force	.30kgf (3N)	.80kgf (8N)	1kgf (10N)
Probe Diameter	46mm	46mm	46mm
Length	198mm	198mm	198mm
Oscillating Rod Diameter	3.7mm	3.7mm	3.7mm
Surface Roughness	Ra<3.2m	Ra<5m	Ra<8m
Requirements m=Metric in= Inch	(Ra<125in)	(Ra<197in)	(Ra<314in)
Min weight of test sample	0.3kg (.66lbs)	0.3kg (.66lbs)	0.3kg (.66lbs)
Minimum thickness of sample	2mm (.08″)	2mm (.08″)	2mm (.08″)

Indentation Depth (m)

Hardness	.30kg Motorized	.80kg Motorized	1kg Motorized	1kg Manual	2kg Manual	5kg Manual	10kg Manual
800HV	4	5	7	7	10	15	22
600HV	4	5	8	8	11	18	25
500HV	5	6	9	9	12	19	27
300HV	6	8	11	11	16	25	35
100HV	10	13	19	19	27	43	61

OPTIONAL ACCESSORIES:

Special Application Impact Devices

Impact Device DPart No. PHT1800-100
Universal standard device:

Use for the majority of hardness testing assignments

Impact Device DLPart No. PHT1800-115

Tip 4mm diameter x 1.96″ length Measurements in extremely confined spaces

Impact Device GPart No. PHT1800-125
Enlarged test tip:

For use on solid heavy components such as; rough castings and forgings. Brinell only.

Impact Device DCPart No. PHT1800-120
Extremely short impact device

Used for very confined spaces such as holes, cylinders, internal measurements

Impact Device D+15Part No. PHT1800-110
Slim front section with coil set back

Hardness measurements in grooves, recessed surface

Impact Device CPart No. PHT1800-130
Reduced impact energy

Precision Support Stand Part No. PHT6000-MAN

Small Cylinder Support Ring(8-22mm diameter)

Part No. PHT6000-521

CYLINDER SUPPORT for MOTORIZED PROBE

Part No. PHT6000-751

Deep Hole Probe Cap(5.53mm diameter/15.5 deep)

Part No. PHT6000-541

Optional Hardness Test Blocks for 6000 Series

• NIST Certified Hardness Test Block Kit
  • Part No. 900330-9410
  • Includes: 1pc HRC 20s
  • 1pc HRC 40s
  • 1pc HRC 60s
  • Full form cert for each block

Aluminum/Brass Rockwell Blocks

Part No.	Description	Shape	Range	Comments
900330-9414AH	Rockwell B	Square	80s	Made in USA Aluminum
900330-9414AL	Rockwell B	Square	50s	Made in USA Aluminum
900330-9418H	Rockwell E	Square	90s	Made in USA Aluminum
900330-9418L	Rockwell E	Square	60s	Made in USA Aluminum
900330-9414BH	Rockwell B	Square	80s	Made in USA Brass
900330-9414BL	Rockwell B	Square	50s	Made in USA Brass

Leeb Hardness Test Blocks

Part No.	Description	Shape	Range	Comments
PHT1300-01	Leeb D” Hardness Test Block	Round	750-800(HRC 50s)	Phase II std.
PHT130001-cert	Leeb D”Hardness Test Block	Round	750-800(HRC 50s)	NIST Certified
PHT1300-02	Leeb D”Hardness Test Block	Round	590-670(HRC40s)	Phase II std.
PHT130002-cert	Leeb D”Hardness Test Block	Round	590-670(HRC40s)	NIST Certified
PHT1300-03	Leeb D”Hardness Test Block	Round	590-670(HRC40s)	Phase II std.
PHT130003-cert	Leeb D”Hardness Test Block	Round	490-570(HRC20s)	NIST Certified
PHT1100G-01	Leeb G”Hardness Test Block	Round	480-670	For use with G”impact devices
PHT1100G-01C	Leeb G”Hardness Test Block ASTM Certified to Brinell	Round	480-670 (HB200s)	For use with G”impact devices

Brinell Hardness Test Blocks

Part No.	Description	Shape	Range	Comments
900355-1000/150	3000kg	Round	150-250	Phase II std. (Steel)
900355-1000/250	3000kg	Round	250-500	Phase II std. (Steel)
900355-3010	3000kg	Rectangle	Low	Aluminum (USA)
900355-3020	3000kg	Rectangle	High	Aluminum (USA)
900355-3030	3000kg	Rectangle	100-200HB	Steel (USA)
900355-3040	3000kg	Rectangle	250-350HB	Steel (USA)
900355-3050	3000kg	Rectangle	500+HB	Steel (USA)
