Description

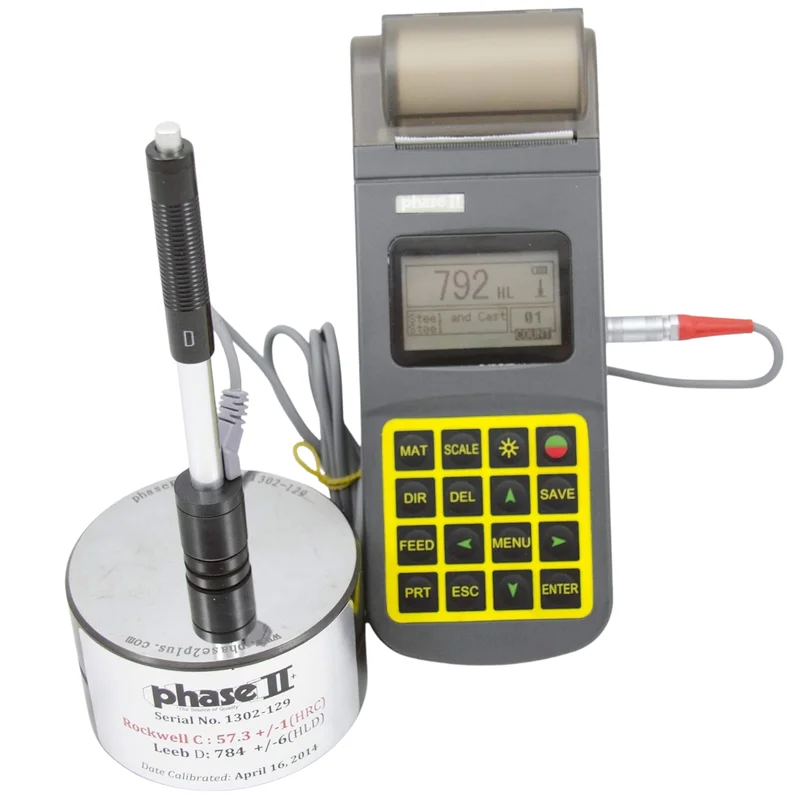

Portable Hardness Tester w/ Printer/Portable Hardness Tester/

Shipped directly from PHASE II+ in NJ, USA

Model No. PHT-3500

Features

Loaded with the most popular features for hardness testing- w/Built-in Thermal Printer and USB output
Portable Hardness Tester specializing in testing large hard metal parts

Designed to test large hard parts:
Example: Tool steel should be close to 1 thick of solid material

State of the art, digital tester is designed to test the hardness of large hard metal parts. Loaded with useful functions and a built in mini-printer the PHT-3500 is clearly the industry leader for fast accurate hardness testing with advanced USB output and thermal printing capabilities.

The PHT-3500 can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.

Operation:

• Load the impact body
• Place the impact body on your test piece
• Push the button to begin testing and obtain reading

Functions:

• Easy to use keypad operation
• Auto identification of Impact Device
• Large LCD display with back light
• USB Ouput
• Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore
• Automatic mean value as well as Min & Max values
• Battery Indicator
• Memory capacity (100 groups)

Specifications:

• Accuracy: +/- 0.5% (referred to L=800,
• Repeatability accuracy: +/- 4L units) L=Leeb
• Measuring range: 200-960 HL
• Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron,
• spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
• Battery type: Rechargeable
• Operating temperature: 5-104 degrees F
• Dimensions: 150 x 74 x 32mm
• Weight: 245 grams

Standard Accessories:

• Base instrument
• Impact device D
• Calibrated test block
• Custom carry case
• Cleaning brush
• Operation manual

Optional accessories:

• Impact devices; DC, D+15, DL, G, C
• Special support rings
• Mini Printer

Options:

• NIST/ASTMcertified hardness test blocksare available.
