Description

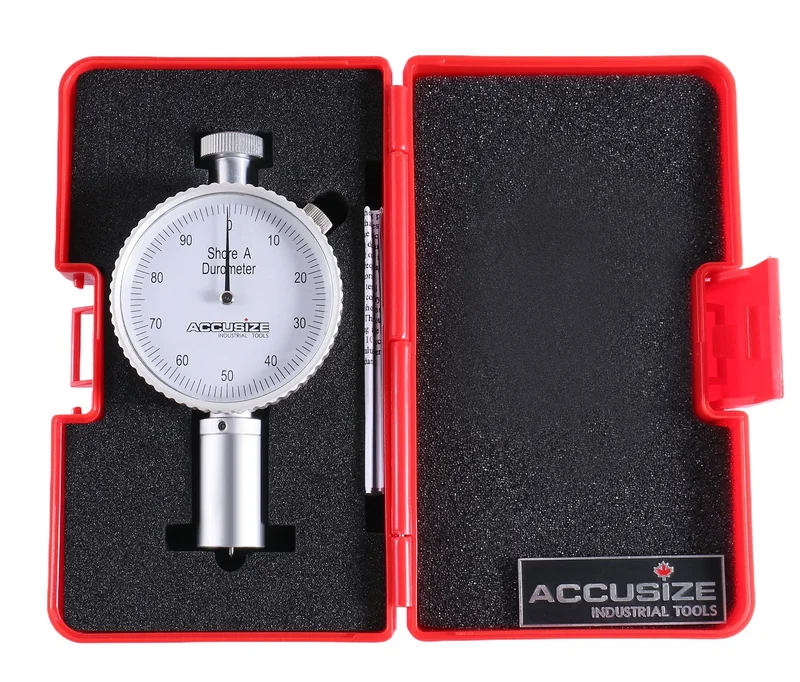

Portable 0-100 Shore Durometer, Glass Plastic Hardness Tester
Shore A
- Measuring range: 0-100 Shore A units.
- Indenter: flat cone point 35.
- Measuring spring force: 0.55-8.065 N.
- Test pressure: 12.5 N.
Shore D
- Measuring range: 0-100 Shore D units.
- Indenter: cone point 30 angle.
- Measuring spring force: 4.45-44.5 N.
- Test pressure: 50 N
| Item | Model | Test pressure | Measuring spring force | Measuring range | Description |
| AK07-8820 | Shore A | 12.5N | 0.55-8.065N | 0-100 Shore A Units | Utilizes a 35 blunt taper point to test soft and natural rubber products, as well as products with similar properties |
| AK90-0336 | Shore D | 50 N | 4.45 – 44.5 N | 0-100 Shore DUnits | Utilizes a 30 blunt taper point to test soft and natural rubber products, as well as products with similar properties |
Operating Instructions for Shore Durometer
