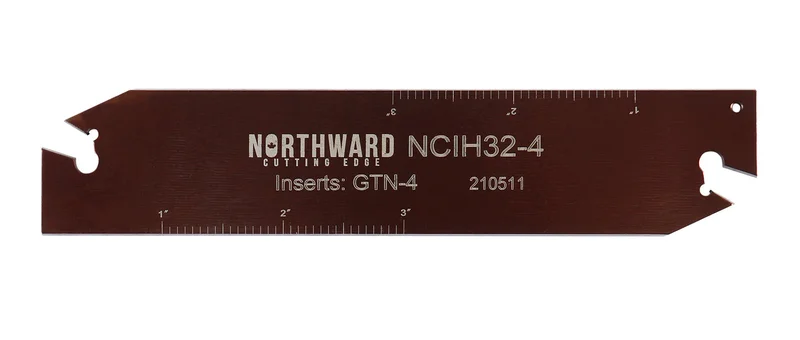

Positive Stop Adjustable Blades for Self-Lock Cut-Off Inserts
- For all CNC lathes and manual lathes.
- For grooves, parting off to center and chamfering
- Easy removal of inserts with extractor.
- Chipbreaker on inserts allows for high speeds and feed rates.
- Multiple lead angles.
- Blade marked with vernier line increment in 32nd
- Using GTN Inserts
- Inserts not included
Chemical composition:
- C (0.56~0.64)
- Si (1.50~2.00)
- Mn (0.60~0.90)
- Cr (0.35)
- Ni (0.35)
- Cu (0.25)
- S (0.035)
- P (0.035)
Material type:
- The material of the blade body is standard spring steel, which is 60Si2Mn (equivalent to the American steel ASTM9260). The Rockwell hardness after hardened is HRC40.
** For purchasing additional inserts, you may find the corresponding Insert SKU below:
| Item | Blade | Dimension | Max Work Dia. | Insert # | ||||
| W | A | L | H1 | H | ||||
| 2402-0002 | NCIH19-2 | 0.078” | 0.070″ | 3.385″ | 0.389″ | 0.728″ | 1-1/2″ |
GTN-2 (TiN Coated, 2403-2003) |
| 2402-0004 | NCIH26-2 | 0.078” | 0.070″ | 4.330″ | 0.624″ | 1.004″ | 3″ |
GTN-2 (TiN Coated, 2403-2003) |
| 2402-0006 | NCIH26-3 | 0.118″ | 0.094″ | 4.330″ | 0.596″ | 0.998″ | 3″ |
GTN-3 (TiN Coated, 2403-2004) |
| 2402-0008 | NCIH26-4 | 0.157″ | 0.126″ | 4.330″ | 0.592″ | 0.989″ | 3″ |
GTN-4 (TiN Coated, 2403-2005) |
| 2402-0010 | NCIH26-5 | 0.197” | 0.157″ | 4.330″ | 0.588″ | 0.981″ | 4″ |
GTN-5 (TiN Coated, 2403-2006) |
| 2402-0012 | NCIH26-6 | 0.236″ | 0.204″ | 4.330″ | 0.570″ | 0.968″ | 4″ |
GTN-6 (TiN Coated, 2403-2007) |
| 2402-0014 | NCIH32-3 | 0.118″ | 0.094″ | 5.905″ | 0.728″ | 1.228″ | 4″ |
GTN-3 (TiN Coated, 2403-2004) |
| 2402-0016 | NCIH32-4 | 0.157″ | 0.126″ | 5.905″ | 0.734″ | 1.219″ | 4″ |
GTN-4 (TiN Coated, 2403-2005) |
| 2402-0018 | NCIH32-5 | 0.197” | 0.157″ | 5.905″ | 0.730″ | 1.211″ | 5″ |
GTN-5 (TiN Coated, 2403-2006) |
| 2402-0020 | NCIH32-6 | 0.236″ | 0.204″ | 5.905″ | 0.712″ | 1.198″ | 5″ |
GTN-6 (TiN Coated, 2403-2007) |
Self-lock Cut-off Inserts for Cutting Steel
|
Inserts for cutting Steel:
|
|
|
Inserts for cutting Aluminum:
|
|
|
Inserts for cutting Stainless Steel:
|
