Description

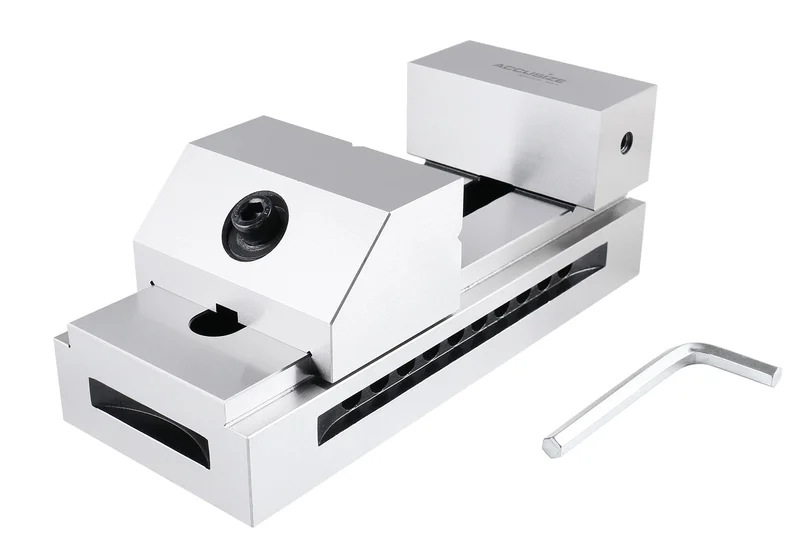

The precision screwless vises have multiple sizes including the rare 4″ parallel screwless vise. The other sizes are 2 in. and 3 in. The parallel screwless vises and rigid and accurate. They are intended to be used in most mills. In other words, they are compact enough to be mounted on even the smallest table mills. Beyond, the stationary jaw of each of the screwless vises has a threaded hole on each side. The hole is designed to mount a material stop for repeated jobs.
- Hardened and stabilized
- Precision ground to a mirror finish
- Simple operation and extremely versatile
- Squareness and parallelism are approx. 0.0002″ on critical sides
| Item | Size | Total Length A |
B | Total Ht. H |
C | Jaw Opening (G) | S |
| 0235-0302 | 2″ | 5.91″ | 1.97″ | 2.09″ | 0.98″ | 0-3.15″ | 0.20″ |
| 0235-0303 | 3″ | 7.48″ | 2.87″ | 2.76″ | 1.38″ | 0-3.94″ | 0.24″ |
| 0235-0304 | 4″ | 9.65″ | 3.94″ | 3.54″ | 1.77″ | 0-5.12″ | 0.31″ |
