Description

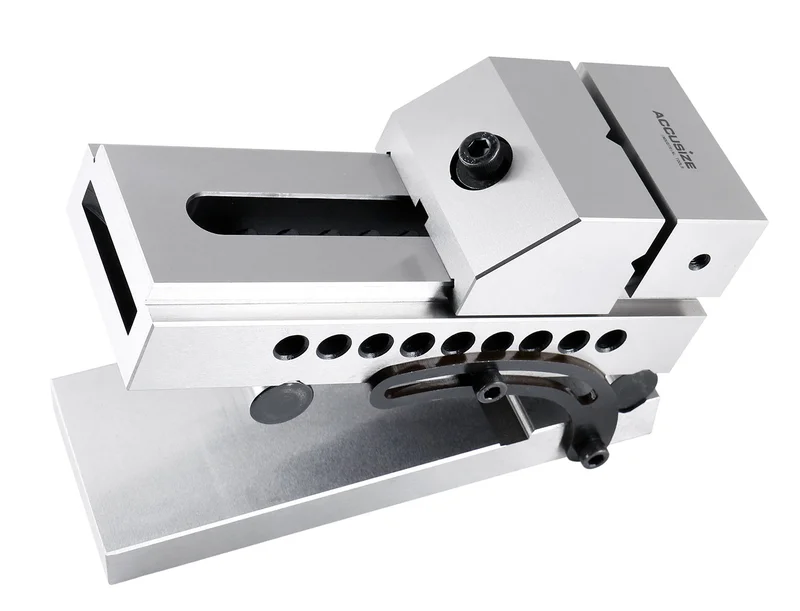

Precision Screwless Sine Vise
- Provides a quick and accurate means of holding a workpiece at an angle for machining, drilling and grinding
- Accuracy is further enhanced by the fact that the center distance between the holes is held within 0.0002″
- Small angles can be set easily and accurately by using standard gauge block sets because of the built-in 0.200″ minute steps ( the distance between the center of the rolls and the top of the vise changes by 0.200″ for every 1 degree of angle)
- Made of hardened solid steel
- All surfaces hardened and ground.
- Adjusts 0-45
- Square and parallel within 0.0002″
- The material of the precision angle plate are:
- 20CrMnTi ( C:0.17-0.23; Si: 0.17-0.37; Mn:0.8-1.1; Cr: 1.00-1.30; Ti: 0.04-0.10)
| Item | Dimension L x W x H | Center Distance of Rolls | Sq. & Parallel | Jaw Capacity | Jaw Height |
| BA66-0420 | 7.48″x2.87″x4.13″ | 5.000″ within 0.0002″ | 0.0002″ | 0-3.94″ | 1.38″ |
| BA66-0425 | 9.65″x3.94″x5″ | 10.000 within 0.0002″ | 0.0003″ | 0-5.12″ | 1.77″ |
