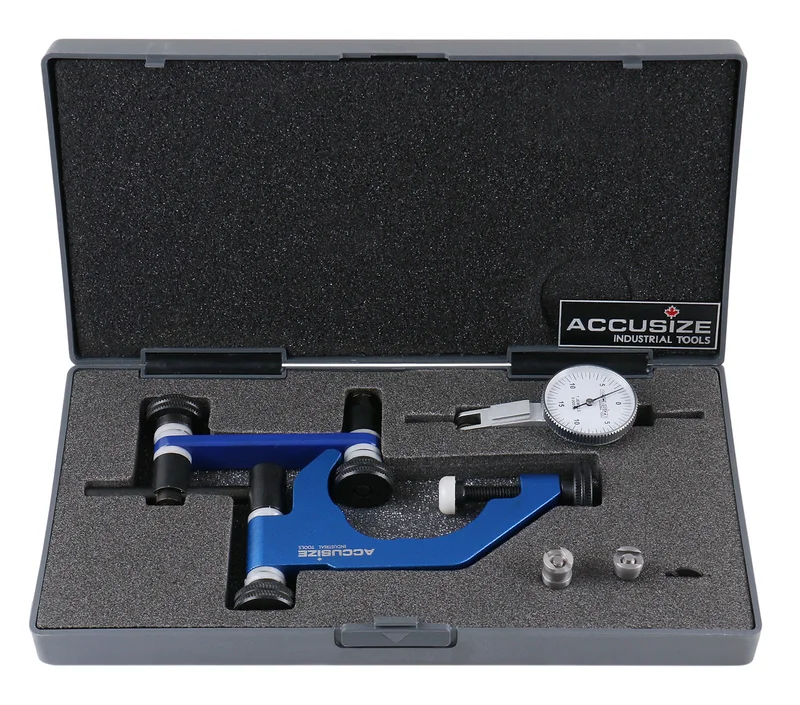

PROFESSIONAL UNIVERSAL INDICATOR HOLDER + 0.03 X 0.0005″ DIAL TEST INDICATOR, P900-S186

Description

PROFESSIONAL UNIVERSAL INDICATOR HOLDER + 0.03 X 0.0005″ DIAL TEST INDICATOR, P900-S186

Features of the Professional Universal Holder

• Versatility in applications include: alignment of work – spindle perpendicularity checking – concentricity reading.
• Frame is designed with 3 bearing pads properly spaced and an opposite pressure screw securing the rigidity of the mounting;
• Does not disturb the working tool;
• Arm length from clamp 4-1/2″;
• Clamping Diameter: 1.9488″ (49.5mm);
• Provides readings accurately and quickly without disturbing the workpiece.
• Accepts all indicators with 5/32″ shank or dovetail.
• Reach from 0-12″ dia. larger reach is possible by replacing & using a longer rod

Features of the Indicator

• Range x Graduation: 0.03 x 0.0005″
• Dovetails on top and back for all-around positioning
• Includes two dovetail clamps (3/8″ & 5/32″).
• Fully Jeweled movement
• Contact Point adjustable 230 Deg.
• in a fitted plastic case
