Description

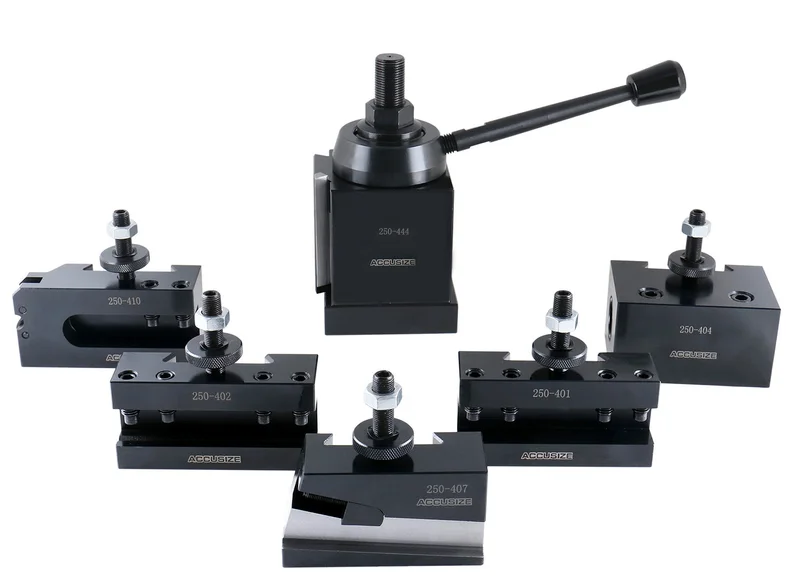

Quick Change Tool Post Sets(USA Style), Wedge Type Tool Post Sets (6 Pieces Sets)
Made of Steel.
Each set consists of oneWedgetype tool postand one of each of 5 tool holders:
- Style 1: Turning & Facing
- Style 2: Boring Turning & Facing
- Style 4: Boring, Heavy-duty
- Style 7: Universal Parting Blades
- Style 10: Knurling, Facing & Turning
| Item | Model | Swing | Description |
| 0251-0111 | AXA | 9-12″ | Each 1pc: 0250-0111, 0250-0101, 0250-0102, 0250-0104, 0250-0107, 0250-0110 |
| 0251-0222 | BXA | 10-15″ | Each 1pc: 0250-0222, 0250-0201, 0250-0202, 0250-0204, 0250-0207, 0250-0210 |
| 0251-0333 | CXA | 13-18″ | Each 1pc: 0250-0333, 0250-0301, 0250-0302, 0250-0304, 0250-0307, 0250-0310 |
| 0251-0444 | CA | 14-20″ | Each 1pc: 0250-0444, 0250-0401, 0250-0402, 0250-0404, 0250-0407, 0250-0410 |
0251-0111
- Interchangeable with Aloris, Phase II, Dorian, Yuasa
- Suitable for lathe center height 0.60 – 1.75″ ( top compound surface to lathe centerline), such as:
- South Bend 9″ & 10″ ,
- Delta 10 & 11″ ,
- Atlas 10 & 12″,
- Nardini TT1000 & TT1200
- many other imported lathes
0251-0222
- Interchangeable with Aloris, Phase II, Dorian, Yuasa
- Suitable for lathe center height 0.70 – 2.20″ (Top compound surface to lathe centerline), such as:
- South Bend 13″ , 14″ & 1307 ,
- Harrison: 11,12 &13″
- Clausing: 1300 series
- Delta 14″
- Logan 14″
- Emco: Elnomat 13S
- Sheldon: 11 & 13″
- Monarch: 13
- Nardini: MS1400 MS1600
- Acer: 1340
- and many other important lathes.
-
The Rockwell Hardness of the tool post is HRC 40 – 45. The Rockwell hardness of the tool holder is HRC 44
