Description

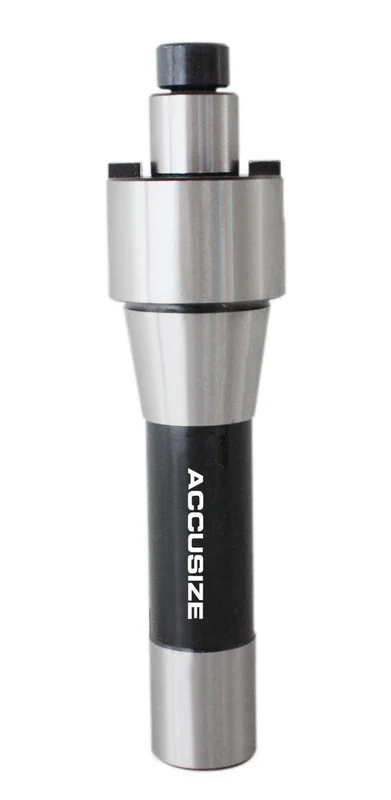

R8 Precision Shell End Mill Arbors
- For the Bridgeport
- Drawbar thread- 7/16″-20
- Holds face mills.
- TIR: 0.0003″
| Item | d | L | Range Diameter | d (Screw) |
L1 (Screw) |
M |
| FG22-8032 | 1/2″ | 5.90″ | 1-1/4″-1-1/2″ | 0.375″ | 0.826″ | 1/4″-28UNF |
| FG22-8048 | 3/4″ | 6.06″ | 1-3/4″-2″ | 0.563″ | 1.063″ | 3/8″-24UNF |
| FG22-8064 | 1″ | 6.10″ | 2-1/4″-2-3/4″ | 0.750″ | 1.299″ | 1/2″-20UNF |
| FG22-8080 | 1-1/4″ | 6.14″ | 3″-3-1/2″ | 0.940″ | 1.535″ | 5/8″-18UNF |
| FG22-8096 | 1-1/2″ | 6.41″ | 4″-5″ | 1.874″ | 1.771″ | 3/4″-16UNF |
