Description

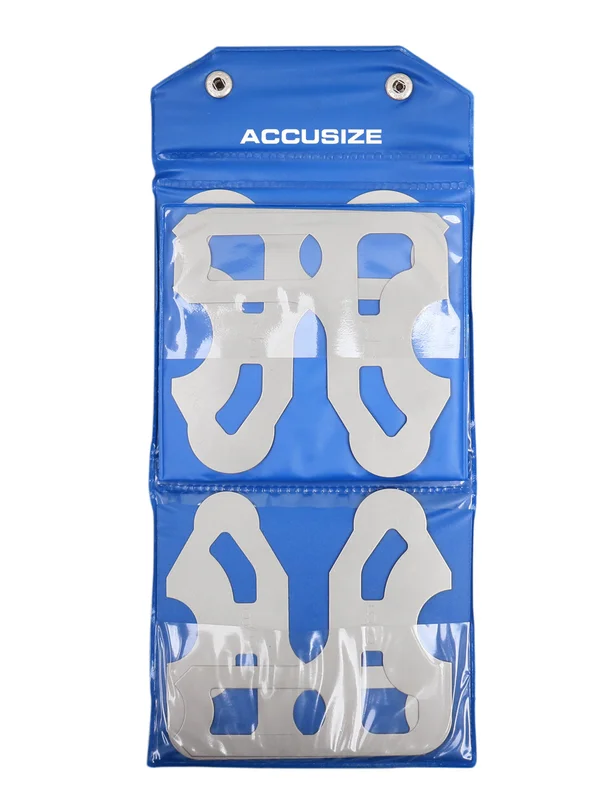

Radius Gage Sets
- Satin chrome finish
- Individually marked
- Rustproof steel
- Supplied in plastic fitted case
| Item | Description |
| 3602-5021 | 25 PCS set: 1/64 – 17/64″ by 64th & 9/32-1/2 by 32nds with Holder |
| 3602-5026 | Range: 26ps set 0.5mm-13mm by 0.5mm with Holder |
| 3602-5022 | 8pc set: 9/16″-1″ by 16ths without Holder |
| 3602-5025 | 26 pc set: 0.010″-0.500″ with Holder |
| 3602-5023 | 8pc set: 1-1/16″-1-1/2″ by 16ths without Holder |
3602-5025 includes Sizes:
- 0.010″ to 0.025″ by 0.005″ ;
- 0.030″ to 0.100″ by 0.010″;
- 0.120″ to 0.300″ by 0.020″ ;
- 0.350″ to 0.500″ by 0.050″.
Accuracy of Gauge Set 3602-5021:
- 1/64″ – 7/64″: +/-0.0008″ ;
- 1/8″ – 15/64″: +/-0.0010″ ;
- 1/4″ – 3/8″ : +/-0.0012″ ;
- 13/32″ – 1/2″: +/-0.0014″ .
Accuracy of Gauge Set 3602-5026:
- 0.5 – 3mm : +/-0.020mm ;
- 3.5 – 6mm : +/-0.024mm ;
- 6.5 – 10mm : +/-0.029mm ;
- 10.5 – 13mm : +/-0.035mm .
Accuracy of Gauge Set 3602-5022:
- 9/16″- 11/16″: +/-0.0014″ ;
- 3/4″ – 1″: +/- 0.0017″ .
Accuracy of Gauge Set 3602-5025:
- 0.010″ – 0.120″: +/-0.0008″ ;
- 0.140″ – 0.240″: +/-0.0010″ ;
- 0.260″ – 0.400″ : +/-0.0012″ ;
- 0.450″ – 0.500″: +/-0.0014″ .
Accuracy of Gauge Set 3602-5023:
- +/- : 0.003″
