Description

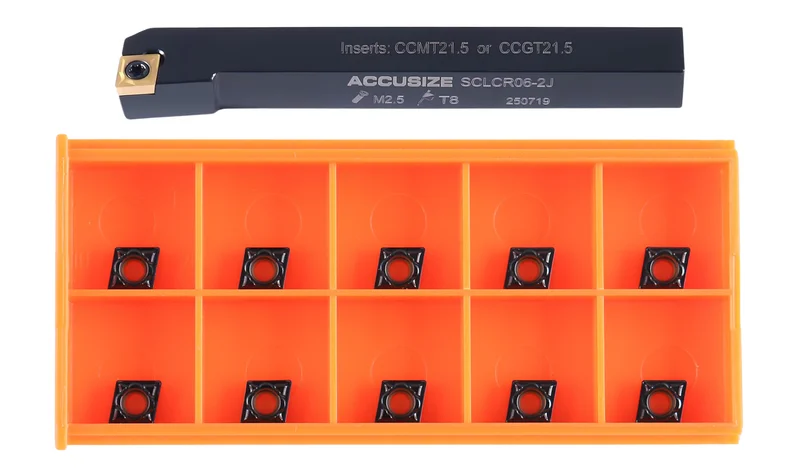

SCLC R/L Toolholders with 10 pc CCMT Carbide CVD Coated Inserts
- Negative 5 end or side cutting edge angle for a positive 80 diamond CCMT CCGT inserts
** For purchasing additional inserts, you may find the corresponding Insert SKU below
| Item SKU# | Right /Left Hand |
Toolholder (SKU) |
Shank Square (A & B) | OAL (C) | F |
Included Inserts (SKU) |
Compatible but not included Insert (SKU) |
Insert QTY |
| 2370-5004INS | Right |
SCLC R-06-2J (2370-5004) |
3/8″ | 3-1/2″ | 1/2″ |
CCMT 21.5 (CVD Coated CCMT21.51-MD, 2200-1008) |
CCMT 21.5 (TiN Coated CCMT21.51, 2100-1008) |
10 |
| 2370-5006INS | Right |
SCLC R-08-3A (2370-5006) |
1/2″ | 4″ | 5/8″ |
CCMT 32.5 (CVD Coated CCMT32.52-MD, 2200-1016) |
CCMT 32.5 (CVD Coated CCMT32.51-MD, 2200-1014) |
10 |
| 2370-6006INS | Left |
SCLC L-08-3A (2370-6006) |
||||||
| 2370-5008INS | Right |
SCLC R-10-3B (2370-5008) |
5/8″ | 4-1/2″ | 3/4″ |
CCMT 32.5 (CVD Coated CCMT32.52-MD, 2200-1016) |
CCMT 32.5 (CVD Coated CCMT32.51-MD, 2200-1014) |
10 |
| 2370-6008INS | Left |
SCLC L-10-3B (2370-6008) |
||||||
| 2370-5010INS | Right |
SCLC R-12-3B (2370-5010) |
3/4″ | 4-1/2″ | 1″ |
CCMT 32.5 (CVD Coated CCMT32.52-MD, 2200-1016) |
CCMT 32.5 (CVD Coated CCMT32.51-MD, 2200-1014) |
10 |
Carbide Inserts, CVD Coating, CCMT, Black/Yellow, 10 ps/box
- Insert Style: CCMT
- 7 degree
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: Finish
Product features
- BPS101 Black/Yellow Coating Grade
- CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting
- Machining of gray and ductile iron at low to medium cutting speed
- For hard materials, continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine-grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chip breaker
- For medium-duty turning with broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
