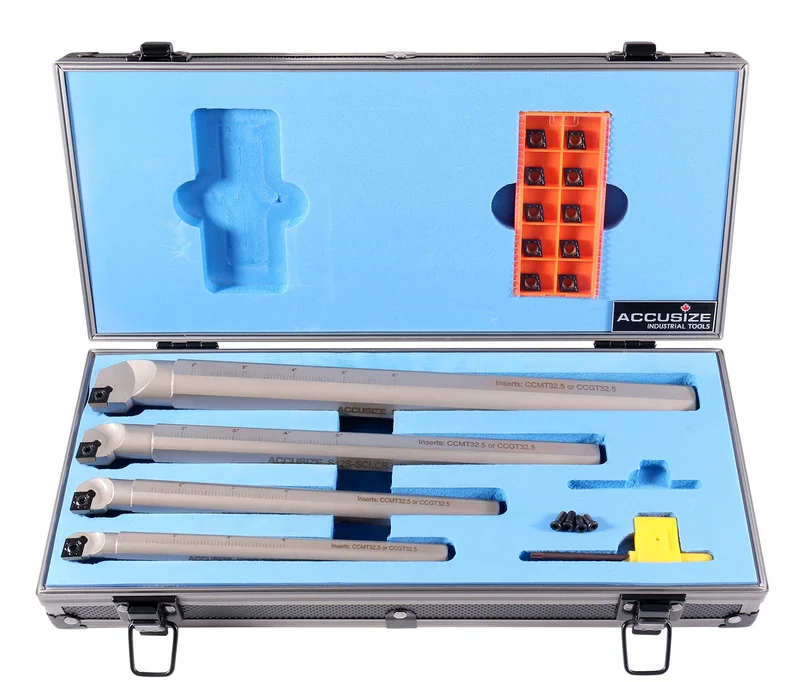

SCLCR 4 Pc Indexable Boring Bar Set, 14 Carbide Black/White, CVD Coating CCMT32.51 Inserts, 1/2″, 5/8″, 3/4″, & 1″

Description

SCLCR 4 Pc Indexable Boring Bar Set with 14 CCMT32.51 Inserts, 1/2, 5/8, 3/4, & 1″

• Extreme Gloss Finish
• Utilizes 80 Diamond CCMT inserts
• Negative 5 End side cutting angle
• Bar hardness approx. 45HRC
• The insert is securely held with a torx screw to reduce tool slipping
• Set includes:
  S08Q-SCLCR3, 1/2″ shank with CCMT32.51-P3 carbide insert, CVD coated.
  S10R-SCLCR3, 5/8″ shank with CCMT32.51-P3 carbide insert, CVD coated.
  S12S-SCLCR3, 3/4″ shank with CCMT32.51-P3 carbide insert, CVD coated.
  S16T-SCLCR3, 1″ shank with CCMT32.51-P3 carbide insert, CVD coated.
  1pc Torx wrench.
  10pcs CCMT32.51-P3 CVD coated carbide inserts #6200-1014.
  4pcs extra Torx screws.
  1pc aluminum fitted case.

10 Pcs/Box Carbide Inserts CVD Coated CCMT32.51 Black/Yellow, #2200-1014×10

• ANSI #: CCMT32.51-P3
• Insert Style: CCMT
• Insert Size: 32.51
• IC: 3/8
• Thickness: 5/32
• Thru Hole: 0.17
• Radius: 1/64
• 7 degree
• Insert Grade: BPS101
• Chip Breaker: MD
• Material: Carbide
• Coating: CVD Al2O3 TICN
• Machining Parts Material: Steel
• Machining Process: Finish

Product features

• BPS101 Black/Yellow Coating Grade
• CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
• Can bear high temperatures
• For steel and steel castings finishing to roughing processing
• Continue cutting to light interrupted cutting
• Machining of gray and ductile iron at low to medium cutting speed
• For hard materials continuous cutting and light interrupted cutting from finishing to roughing
• Wet and dry processing
• Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
• Preferred choice chip breaker on General Purpose Finishing

Features of chipbreaker

• For medium-duty turning With broad capability for steel, stainless steel, grey and nodular cast-iron
• Operations: turning, facing and profiling
• Advantages: all-round, reliable with problem-free machining
• Limitations: depth of cut and feed, risk of overloading the cutting edge
• Components typically: axles, shafts, hubs, gears, etc.
