Description

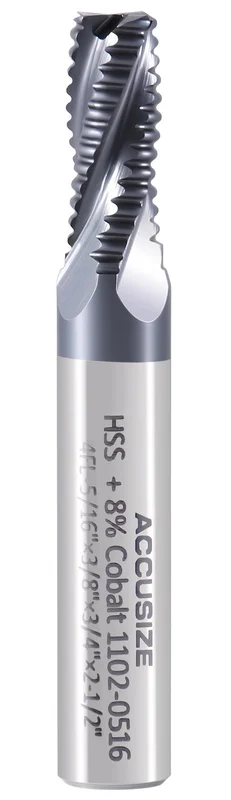

TiAlN Coated M42-8% Cobalt Roughing End Mills, Standard Tooth
- TiAlN Coated
- Single-end
- Center cutting
- M42-8% Premium cobalt
- Flutes ground by a world-class IS-9002 Factory, CNC Qualified
| Item # | Dia. | Shk. Dia. | Flt. Length | Oal. | Fl |
|---|---|---|---|---|---|
| 1102-0014 | 1/4″ | 3/8″ | 3/4″ | 2-1/2″ | 4 |
| 1102-0516 | 5/16″ | 3/8″ | 3/4″ | 2-1/2″ | 4 |
| 1102-0038 | 3/8″ | 3/8″ | 3/4″ | 2-1/2″ | 4 |
| 1102-0012 | 1/2″ | 1/2″ | 1-1/4″ | 3-1/4″ | 4 |
| 1102-0120 | 1/2″ | 1/2″ | 2″ | 4″ | 4 |
| 1102-0058 | 5/8″ | 5/8″ | 1-5/8″ | 3-3/4″ | 4 |
| 1102-0034 | 3/4″ | 3/4″ | 1-5/8″ | 3-3/4″ | 4 |
| 1102-0001 | 1″ | 1″ | 2″ | 4-1/2″ | 5 |
| 1102-0031 | 1″ | 1″ | 3″ | 5-1/2″ | 5 |
| 1102-0114 | 1″ | 1″ | 4″ | 6-1/2″ | 5 |
Download the Product Document: Recommended Cutting Speed for Accusize M42-8% TiAlN Coated Roughing End Mills
| Recommended Cutting Conditions for Roughing End Mills [Side Milling] | ||||||||||||
| Work Material | Low Carbon Steels (Tensile Strength: 480N/mm2) Copper Alloys, Cast Iron(Soft) |
Medium Carbon Steels (Tensile Strength: 480-720N/mm2) Copper Alloys, Cast Iron(Hard) |
High Carbon Steels (Tensile Strength: 720-950N/mm2) Alloys Steel, Stainless Steels |
Special Alloy Steels Untree-cutting Steels (30-40HRC) |
Aluminium, Aluminium Alloys & Plastic |
|||||||
| Mill Dia | Ae | Ad | Speed | Feed | Speed | Feed | Speed | Feed | Speed | Feed | Speed | Feed |
| (inch) | (inch) | (inch) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) | (rpm) | ( ft /min) |
| 1/4″ | 1/8″ | 3/8″ | 1900 | 0.246 | 1425 | 0.177 | 1064 | 0.111 | 808 | 0.068 | 4275 | 0.738 |
| 5/16″ | 5/32″ | 15/32″ | 1330 | 0.278 | 1007 | 0.209 | 760 | 0.134 | 570 | 0.085 | 2993 | 0.879 |
| 3/8″ | 3/16″ | 9/16″ | 1064 | 0.311 | 808 | 0.236 | 599 | 0.147 | 451 | 0.095 | 2375 | 0.977 |
| 1/2″ | 1/4″ | 3/4″ | 855 | 0.347 | 637 | 0.265 | 475 | 0.167 | 356 | 0.104 | 1900 | 1.115 |
| 5/8″ | 5/16″ | 15/16″ | 675 | 0.390 | 504 | 0.295 | 380 | 0.187 | 285 | 0.118 | 1520 | 1.256 |
| 3/4″ | 3/8″ | 1-1/8″ | 532 | 0.475 | 404 | 0.357 | 299 | 0.209 | 224 | 0.134 | 1188 | 1.394 |
| 1″ | 1/2″ | 1-1/2″ | 428 | 0.390 | 318 | 0.295 | 238 | 0.187 | 181 | 0.118 | 950 | 1.394 |
- The Indicated speeds and feeds are for side milling
- a depth(Ae)=0.5D
- a width of cut(Ad)=1.5D
- Use a rigid and precise machine and holder.
- Use suitable cutting fluids
Recommended cutting speed and feed
