Description

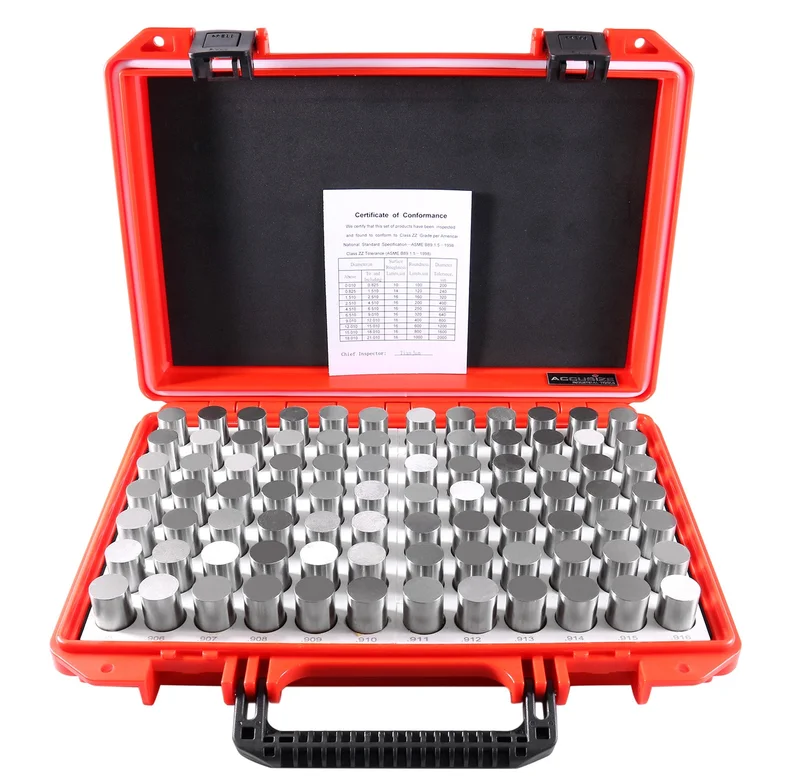

Pin Gage Sets
- Class ZZ
- Made of ball bearing steel
- Each gage is electro-etched with its actual size.
- Tolerance:
For minus set tolerance : +0.0000″ / -0.0002″
For plus sets tolerance : +0.0002″ / -0.0000″ - All gages are 2″ long, centerless lapped.
- Hardness: Heat-treated to 6062 Rockwell C.
- Finish: each gage has a 10 micro finish or better.
- Overall length 2″.
- Supplied in a fitted case.
Minus tolerance sets
| Item | Range | Note |
| M0(-) | 0.011″-0.060″x50PCS | |
| M1(-) | 0.061″-0.250″x190PCS | |
| M1(-)A | 0.061″-0.250″x190PCS | with an Enhanced Aluminum Case |
| M2(-) | 0.251″-0.500″x250PCS | |
| M2(-)A | 0.251″-0.500″x250PCS | with an Enhanced Aluminum Case |
| M3(-) | 0.501″-0.625″x125PCS | |
| M4(-) | 0.626″-0.750″x125PCS | |
| M5(-) | 0.751″-0.832″x82PCS | |
| M6(-) | 0.833″-0.916″x84PCS | |
| M7(-) | 0.917″-1.000″x84PCS |
Plus tolerance sets
| Item | Range |
| P0(+) | 0.011″-0.060″x50PCS |
| P1(+) | 0.061″-0.250″x190PCS |
| P2(+) | 0.251″-0.500″x250PCS |
| P3(+) | 0.501″-0.625″x125PCS |
| P4(+) | 0.626″-0.750″x125PCS |
| P5(+) | 0.751″-0.832″x82PCS |
| P6(+) | 0.833″-0.916″x84PCS |
| P7(+) | 0.917″-1.000″x84PCS |
