Description

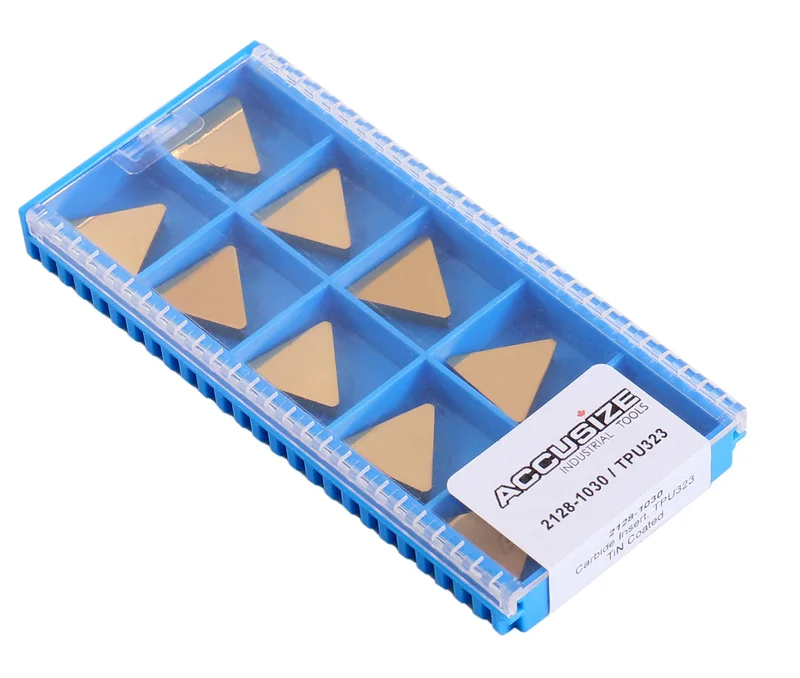

Carbide Inserts, TPU, TiN Coated, 10 ps/Set
TPU inserts are Positive Triangular Inserts.The positive-rake feature enables the inserts to havean edge that is less than 90 to sit flat in the insert holder for improved cutting clearance and a better finish than negative-rake ones. The inserts have cutting edges on 1 side.
The triangle TiN coated carbide TPG inserts help you save time and cost. When a cutting edge becomes dull, you just need to rotate the insert in the holder to use the sharp edge. When you buy the replacement inserts, be noted that the larger nose angles and larger tip radii enable a stronger cutting edge, but they result in increased vibration and a rougher finish.
Tin coated inserts work longer and are able to run at faster speeds than uncoated inserts.
- Carbide inserts
- C5 Grade Coated
| Item # | Product # | Inset | ISO |
I.C (d) |
Thickness (s) |
Hole |
Radius (r) |
| 6128-1026 | 2128-1026 | TPU321 | TPUN160304 | 3/8″ | 1/8″ | – | 1/64″ |
| 6128-1030 | 2128-1030 | TPU323 | TPUN160312 | 3/8″ | 1/8″ | – | 3/64″ |
