Description

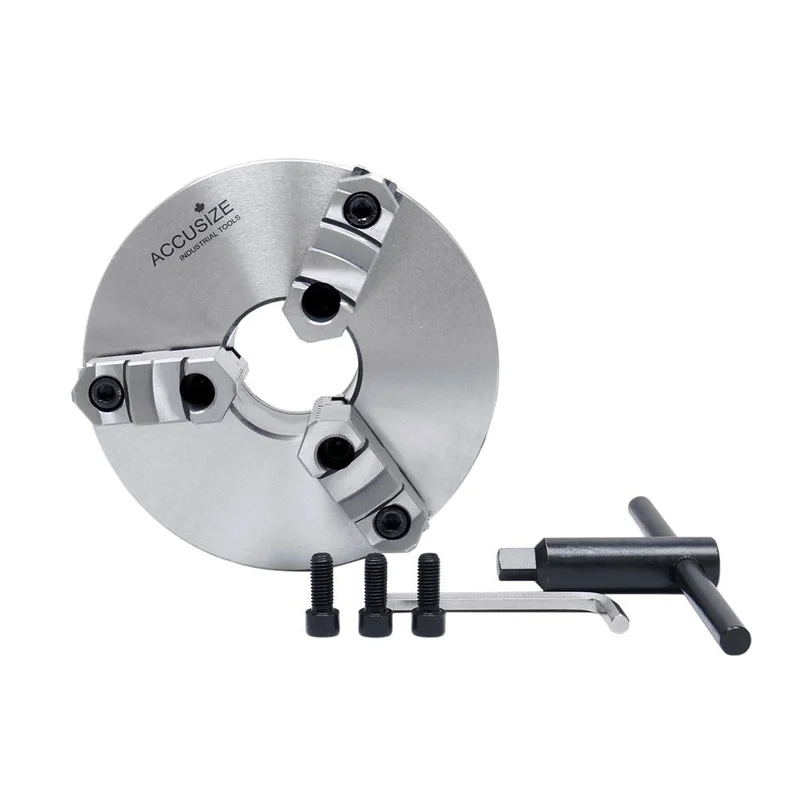

Two-Piece Reversible Jaw 3-Jaw Chucks, Plain Back
- 0.003″ TIR
- 2-piece reversible jaws
- All jaws are hardened
- Semi-steel body.
Specification
| Item | Diameter | Center Hole | D1 | D2 | D3 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) |
| 0559-0114 | 6″/160mm | 1.575″ | 5.118″ | 5.591″ | 1.575″ | 4.291″ | 2.559″ | 0.197″ | 3-M8 | 160 | 3000 |
| 0559-0115 | 8″/200mm | 2.559″ | 6.496″ | 7.087″ | 2.559″ | 4.724″ | 2.953″ | 0.217″ | 3-M10 | 250 | 2500 |
| 0559-0116 | 10″/250mm | 3.150″ | 8.110″ | 8.898″ | 3.150″ | 5.236″ | 3.150″ | 0.217″ | 3-M12 | 320 | 2000 |
| 0559-0117 | 12″/315mm | 3.937″ | 10.236″ | 11.220″ | 4.134″ | 5.827″ | 3.543″ | 0.236″ | 3-M16 | 400 | 1500 |
Clamping Range / Jamming Range for Accusize 2-pc Reversible Jaw 3-Jaw Self-centering Chucks with Plain Backs
| Item | Diameter | Mount | Inside Jaw | Outside Jaw | |
| Clamping range | Jamming range | Clamping range | |||
| A-A1 | B-B1 | C-C1 | |||
| 0559-0114 | 6″/160mm | Plain Back | 0.118″-2.165″/3-55mm | 1.968″-6.299″/50-160mm | 2.165″-5.708″/55-145mm |
| 0559-0115 | 8″/200mm | Plain Back | 0.157″-3.346″/4-85mm | 2.559″-7.874″/65-200mm | 2.559″-7.874″/65-200mm |
| 0559-0116 | 10″/250mm | Plain Back | 0.236″-4.330″/6-110mm | 3.149″-9.842″/80-250mm | 3.543″-9.842″/90-250mm |
| 0559-0117 | 12″/315mm | Plain Back | 0.394″-5.511″/10-140mm | 3.740″-12.401″/95-315mm | 3.937″-12.401″/100-315mm |
