Description

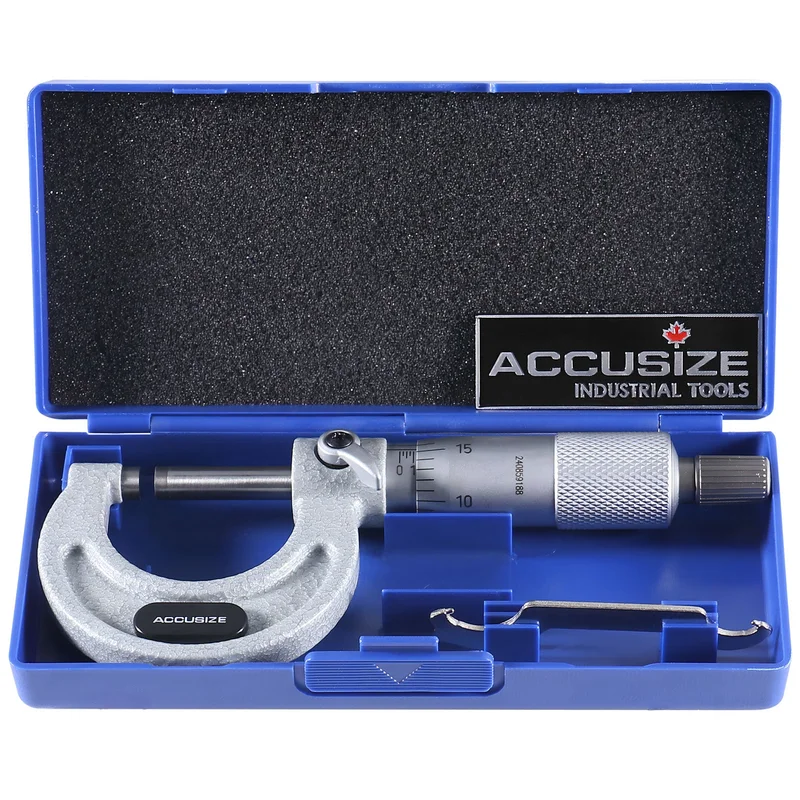

Ultra-Precision M-Type Outside Micrometers
- Resolution: 0.0001″(inch); 0.01mm(metric).
- Carbide-tipped measuring face.
- With ratchet stops and locking levers.
- 1-2″ (inch), 25-50mm (metric) and larger come with calibration standards.
- Plastic fitted case.
| Item | Range | Micrometer Tolerance/Accuracy | Standard Tolerance/Accuracy |
|---|---|---|---|
| EG00-0001 | 0-1″ | 0.00015″ | 0.00008″ |
| EG00-0002 | 1-2″ | 0.00015″ | 0.00008″ |
| EG00-0003 | 2-3″ | 0.00019″ | 0.00008″ |
| EG00-0004 | 3-4″ | 0.00019″ | 0.00012″ |
| EG00-0005 | 4-5″ | 0.00023″ | 0.00016″ |
| EG00-0006 | 5-6″ | 0.00027″ | 0.00016″ |
| EG00-0007 | 6-7″ | 0.00027″ | 0.00020″ |
| EG00-0008 | 7-8″ | 0.00031″ | 0.00020″ |
| EG00-0009 | 8-9″ | 0.00031″ | 0.00024″ |
| EG00-0010 | 9-10″ | 0.00031″ | 0.00024″ |
| EG00-0011 | 10-11″ | 0.00035″ | 0.00028″ |
| EG00-0012 | 11-12″ | 0.00035″ | 0.00028″ |
| Item | Range | Tolerance | Accuracy |
|---|---|---|---|
| EG00-0025 | 0-25mm | 0.002mm | 0.004mm |
| EG00-0050 | 25-50mm | 0.002mm | 0.004mm |
| EG00-0075 | 50-75mm | 0.003mm | 0.005mm |
| EG00-0100 | 75-100mm | 0.003mm | 0.005mm |
