Description
Economical Ultrasonic Thickness Gauge
Shipped directly from PHASE II+ in NJ, USA

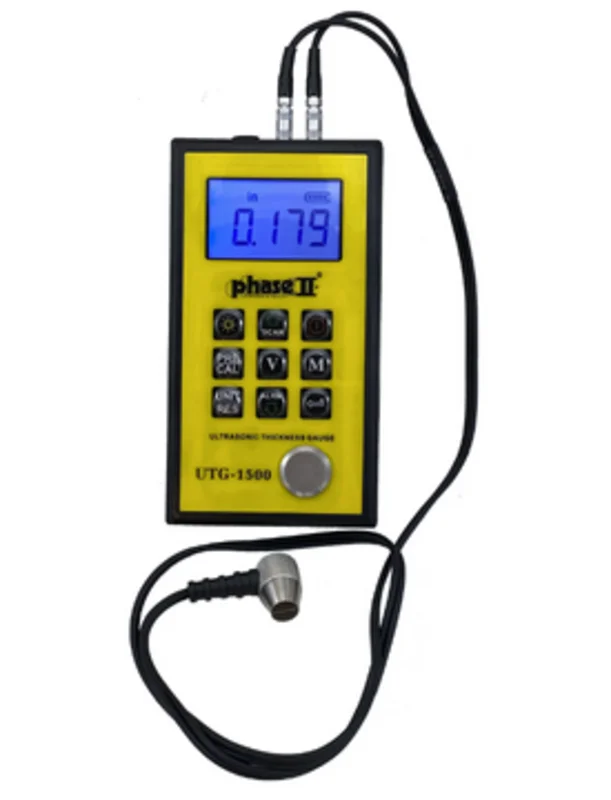

Model No. UTG-1500
Features
Our most economical ultrasonic thickness gauge includes 5Mhz dual sensor probe, couplant gel and carry case
State-of-the-art, digital tester is packed with features typically found on high-end models only. This multi-functional unit offers everything from basic measurement, Scanning Capabilities, Adjustable Sound Velocity, and visible memory function. This dynamic sonic gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.
The UTG-1500 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
Specifications: Model No. UTG-1500
| Display type | 4-digit LCD w/Back Light |
|---|---|
| Minimum display unit | 0.001/0.01mm (selectable) |
| Measuring range: | 0.04-8.0 in steel w/standard probe |
| Accuracy | +/- (0.5% thickness + .001) |
| Sound velocity range | 3280-32805 ft/s (1000-9999m/s) |
| Upper/Lower Limit Preset Alarm |
Upper/Lower Limit Preset Alarm |
| Operating temperature | 32-122 degrees F |
| Frequency | 5MHz |
| Update range | 4Hz |
| Memory | 20 Groups (100 files/group) |
| Output | n/a |
| Power supply | 3v AA alkaline batteries (2pc) |
| Battery life | Approx. 100 hours (w/backlight off) |
| Power consumption | Working current is less than 3V |
| Dimensions | 5.90 x 2.91 x 1.30 (150 x 74 x 33mm) |
| Weight | 8.6oz (245g) |
Probe Selection: Optional
| Probe Type/Size | Part No. | Measuring Range: (Steel) |
Description |
|---|---|---|---|
| 5MHz/6mm | UTG2000-420 | 0.030 2.35 | For testing small pipe |
| 2.5MHz/12mm | UTG2800-420 | 0.118 19.65 | Large parts/pipes |
| 7.5MHz/6mm | UTG2800-750 | 0.025 0.984 | Thin wall pipe |
| 5MHz/12mm | UTG2000-450 | 0.157 3.15 | High Temp (up to 590F) |
| 2.0MHz/22mm | UTG2000-440 | 0.118 1.96 | Gray Cast Iron |
Note: Measurement range depends upon the probe, material, structure, and surface condition. High-temperaturetolerance depends upon the probe property and type of couplant being used.
