Description
- Center Height : 5.28 /134mm
- Center taper : MT-4
- Tilting range : 0-90
- Overall Height : 235mm
- Base Length : 212mm
- Base Width : 135mm
- Bolt Slot: 16mm
- Spindle through hole Dia : 25mm
- The ratio of worm to gear: 1:40

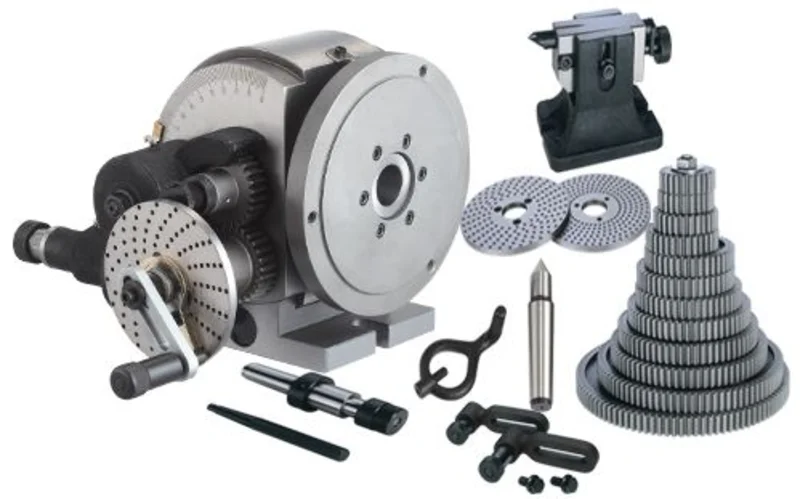

- Set of Gears, Dividing Plates, Tailstock, MT-4 Dead Center are included
- Please note the chuck is not included
- Applicable Chuck : 6, 8
- Brand : VERTEX
- Weight: 147.9 lbs
- Dimensions: 32 x 14.17 x 14.17 in
** Please note the chuck is not included
BS-2 (Head-stock) Unit: mm
| Order No. | A | B | H | I | a | b | g | h | Taper of center | SPINDLE THROUGH HOLE | CODE NO. |
| BS-2 | 359 | 340 | 235 | 20 | 212 | 135 | 16 | 134 | MT-4 | 25 | 1001-052 |
BS-2 (Tail-stock) Unit: mm
| Order No. | A1 | B1 | H1 | I1 | a1 | b1 | h1 | g1 | N.W. (KG) |
| BS-2 | 135-175 | 75 | 130 | 15 | 175 | 125 | 120-145 | 16 | 1001-052 |
