Description

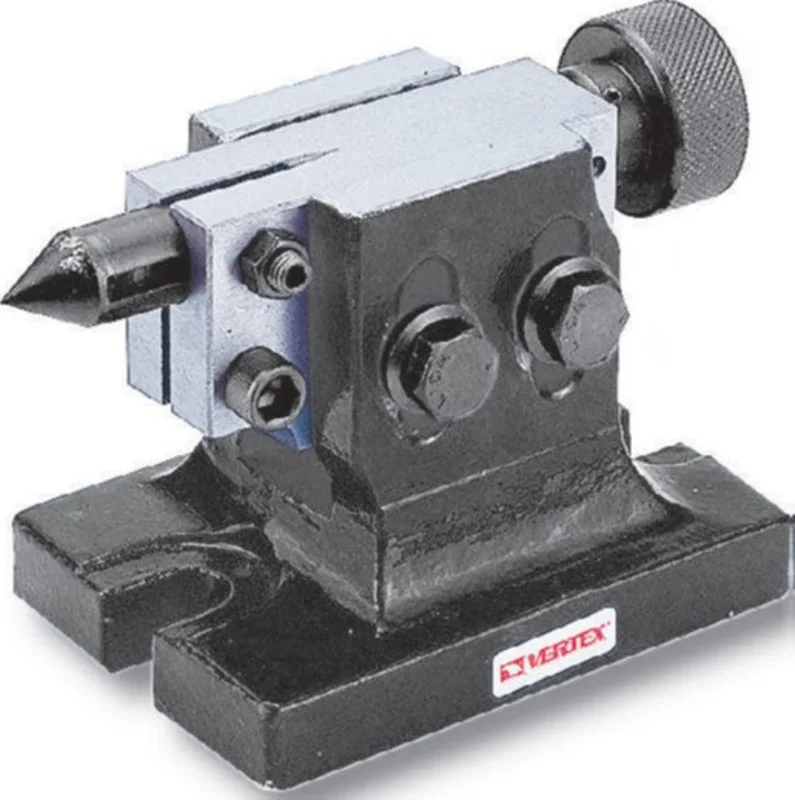

These tailstocks, or foot stocks, are intended to be used in conjunction with horizontal/vertical rotary tables on milling machines.
Unit of Measurement (unless otherwise stated): mm
| Model | Adjustable | A | B |
H (Center to ground) |
I | a | b | g | Suite for Rotary Tables | Weight (lbs) |
DIM (inches) |
Item No. | |
| Highest | Lowest | ||||||||||||
| TS-1 | 108 | 80 | 155-180 | 64 | 107 | 11 | 134 | 94 | 16 | Horizontal/Vertical Rotary Table HV-4 & HV-6 Semi-Universal Dividing Head BS-0 Tilting Rotary Table VUT-6, VUT-100 & VUT-150 |
8.83 | 8 x 6 x 5.2 | 1001-022 |
| TS-2 | 150 | 115 | 170-195 | 64 | 150 | 11 | 155 | 110 | 16 | Semi-Universal Dividing Head BS-1 & BS-2 Super Indexing Spacer CS-6 Horizontal/Vertical Rotary Table HV-8 |
11.92 | 8 x 8 x 6 | 1001-023 |
| TS-3 | 205 | 130 | 210-235 | 64 | 205 | 13 | 185 | 138 | 16 | Super Indexing Spacer CS-8 Horizontal/Vertical Rotary Table HV-10 & HV-12 Tilting Rotary Table VUT-10 & VUT-12 |
20.97 | 12 x 10 x 8 | 1001-024 |
| TS-4 | 260 | 182 | 210-235 | 75 | 260 | 17 | 205 | 144 | 16 | Horizontal/Vertical Rotary Table HV-14 & HV-16 Simple Indexing Spacer CC-12 |
28.04 | 14 x 12 x 8.8 | 1001-025 |
