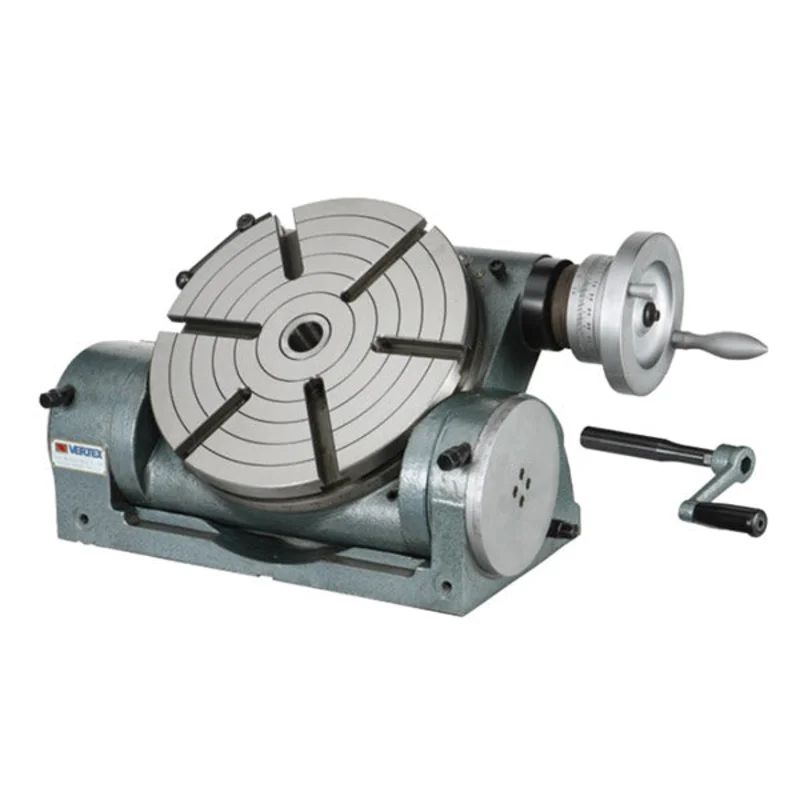

Description
- Diameter of the Table : 12/300mm
- Center Taper : MT-4
- Gear ratio : 1:90
- Vernier reading : 10 second
- One handle rotation : 4
- Scale of the collar : 1
- Center Height : 169mm
- Tilting range : 0-90
- Low profile, low center height
- Tilting by rigid and strong design, 2 supporter and rigid clamping system construction
- Minimum set up time
- Tilting angle can be adjusted by worm and worm gear system
- Worm shafts are hardened and ground
- Tailstock to order : TS-3 (1001-024)
- Diving Plate to order : DP-3(1001-032)
- Brand : VERTEX
- Weight: 238.41 lbs
- Dimensions:24 20 12.8 in
