Description

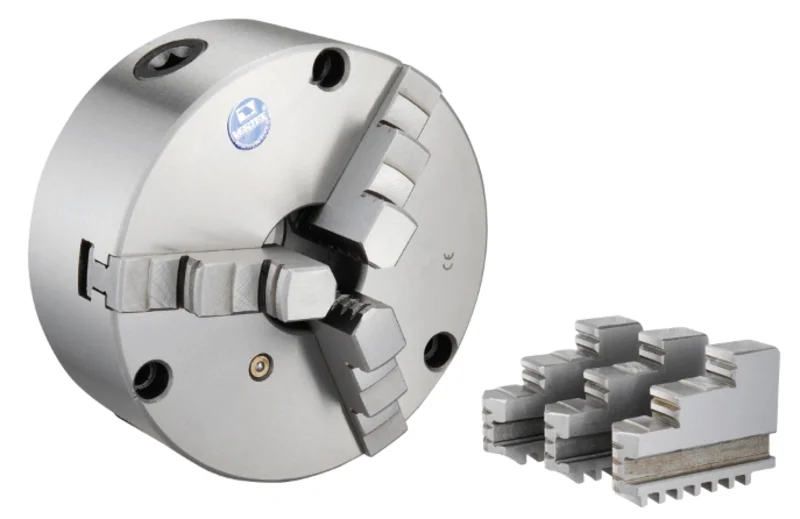

- Front mount with plain back self centering Chuck
- OD capacity: 0.16 -7.09
- ID Capacity: 2.2-6.69
- Bolt size: 3 x M10
- 2 sets of solid Jaws included
- Brand: VERTEX Taiwan
- Weight: 34.44 lbs
- Dimensions: 10 x 10.8 x 10.8 in
Unit of Measurement: mm
|
Model |
D-Size |
d1 |
d2 |
d3 |
L |
L1 |
h |
Thread |
Gripping Range |
Weight (kgs) |
Item No. |
|
|
O.D. Range |
I.D. Range |
|||||||||||
|
VSC-8A |
200 |
180 |
165 |
70 |
109 |
75 |
5 |
3-M10 |
4-180 |
56-170 |
15.6 |
5002-025A |
